STJH-STATIC-DISSIPATIVE-CLEANROOM-WALL-PANEL-RW-75

Static-Dissipative Cleanroom Wall Panel 75 mm Antistatic Rock Wool

Intermediate-depth coated mineral panel for static-sensitive room boundaries.

Defined cover width supports regular wall planning.
Metal edge pieces protect the internal insulation.

Request a Quote Browse Products

Product Introduction

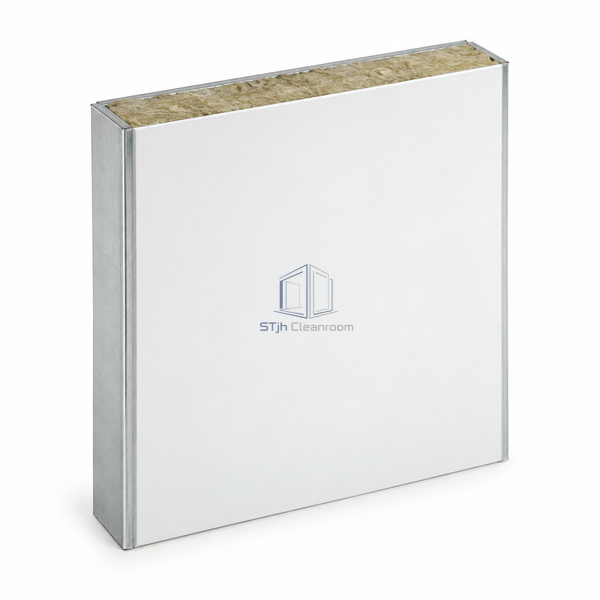

A 75 mm mineral sandwich combines finished metal faces with cold-formed edge pieces. The antistatic surface is retained across the wall area while metal connections join the modules at their boundaries.

Key Features

Defined cover width supports regular wall planning.
Metal edge pieces protect the internal insulation.

Technical Parameters

Core Material	Rock wool mineral fiber
Panel Thickness	75 mm
Effective Width	1180 mm
Steel Facing Thickness	0.5 or 0.6 mm
Core Density	80–120 kg/m³
Edge Member Thickness	0.6–0.8 mm
Edge Construction	Cold-formed steel strip
Surface Finish	Antistatic coated steel
Joint Type	Metal panel connector
Customization	Available to suit the application and operating conditions.

Applications

75 mm electronics partition systems
Static-sensitive assembly-room boundaries

Solutions for Your Application

The wall depth must fit intermediate-size room interfaces.

The 75 mm module supplies a consistent connecting section.

Functional surface requirements can be lost when specifying only the core.

The antistatic coating is identified independently from the mineral infill.

Available Options

Metal skin thickness choice
Cut-to-layout modules

Planning a Static-Dissipative Cleanroom Wall Panel 75 mm Antistatic Rock Wool specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
