STJH-STATIC-DISSIPATIVE-CLEANROOM-WALL-PANEL-RW-50

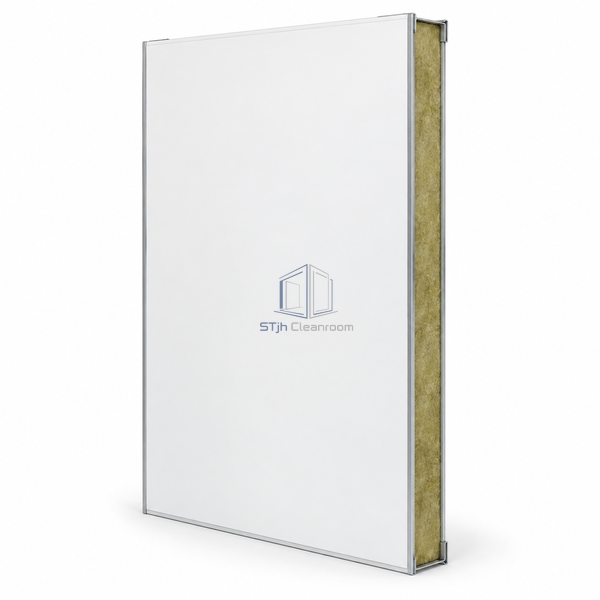

Static-Dissipative Cleanroom Wall Panel 50 mm Antistatic Rock Wool

Thin mineral-core partition with an antistatic coated room surface.

Functional finish is applied to the metal face.
Formed perimeter members retain the mineral center.

Request a Quote Browse Products

Product Introduction

The rock-wool center is enclosed by metal skins and formed edge members. A functional coating specifies the exposed surface for static-controlled spaces, while the mineral infill defines the wall's internal construction.

Key Features

Functional finish is applied to the metal face.
Formed perimeter members retain the mineral center.

Technical Parameters

Core Material	Rock wool
Panel Thickness	50 mm
Effective Width	1180 mm
Steel Facing Thickness	0.5 or 0.6 mm
Core Density	80–120 kg/m³
Edge Member Thickness	0.6–0.8 mm
Edge Construction	Cold-rolled formed steel strip
Surface Finish	Antistatic coating
Joint Type	Metal connection
Customization	Available for the intended application and operating environment.

Applications

Static-controlled clean partitions
Electronics support-room walls

Solutions for Your Application

Ordinary decorative paint is not the specified surface system.

The panel uses an antistatic functional coating.

The room needs a mineral core within a slim partition.

Rock wool is enclosed in the shallow sandwich section.

Available Options

Facing gauge selection
Custom panel dimensions

Planning a Static-Dissipative Cleanroom Wall Panel 50 mm Antistatic Rock Wool specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
