STJH-STATIC-DISSIPATIVE-CLEANROOM-WALL-PANEL-RW-100

Static-Dissipative Cleanroom Wall Panel 100 mm Antistatic Rock Wool

Deep mineral-core wall module with a specified antistatic finish.

Deep section remains a single fabricated sandwich.
Steel edge members establish the connection boundary.

Request a Quote Browse Products

Product Introduction

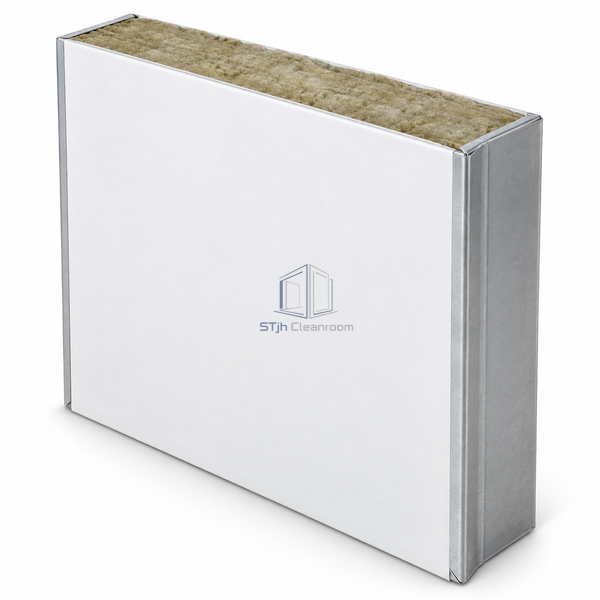

The thick rock-wool section separates two metal skins within formed steel edge members. This wall configuration retains a functional coated surface while providing a substantial mineral-filled panel body.

Key Features

Deep section remains a single fabricated sandwich.
Steel edge members establish the connection boundary.

Technical Parameters

Core Material	Rock wool
Panel Thickness	100 mm
Effective Width	1180 mm
Steel Facing Thickness	0.5 or 0.6 mm
Core Density	80–120 kg/m³
Edge Member Thickness	0.6–0.8 mm
Edge Construction	Cold-rolled metal frame strip
Surface Finish	Antistatic coating
Joint Type	Metal modular connection
Customization	Available according to the intended use and operating environment.

Applications

Deep static-controlled room partitions
Mineral-core electronics enclosure walls

Solutions for Your Application

A substantial wall section is needed without separate surface lining.

The functional finish is integrated with the deep sandwich faces.

A thick mineral edge needs controlled closure at the joint.

Formed metal members contain the infill along the connection.

Available Options

Custom wall dimensions
Steel facing gauge choice

Planning a Static-Dissipative Cleanroom Wall Panel 100 mm Antistatic Rock Wool specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
