STJH-STAINLESS-STEEL-WELDED-AIR-DUCT-304-MILL

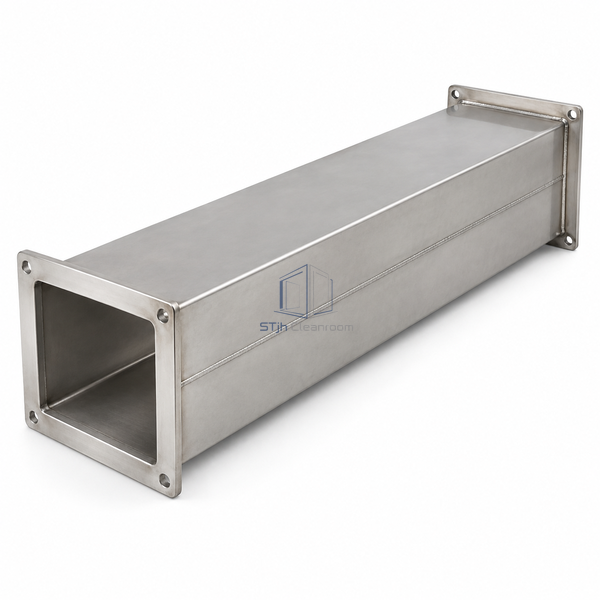

Stainless Steel Welded Air Duct 304 Mill-Finish

Mill-finish stainless duct for practical welded air handling.

Continuous welded seams replace folded longitudinal joints.
Unbrushed faces provide a straightforward utility finish.

Request a Quote Browse Products

Product Introduction

This general-service construction uses 304 sheet with continuous TIG seams and passivated weld areas. Mill-finish faces suit mechanical spaces where a durable cleanable metal surface matters more than a decorative grain, and straight sections reduce the number of intermediate connections.

Key Features

Continuous welded seams replace folded longitudinal joints.
Unbrushed faces provide a straightforward utility finish.

Technical Parameters

Material Grade	304 stainless steel
Available Sheet Gauge	20–10 gauge
Welding Method	TIG
Weld Treatment	Passivation
Surface Finish	Mill finish
Nominal Section Length	1524 mm less flange allowance
Standard End Flange	12.7 mm field-weld flange
Section Form	Rectangular or round
Insulation	Optional external insulation
Customization	Size and connection details can suit the intended application and environment.

Applications

Cleanable plantroom duct runs
General stainless exhaust distribution

Solutions for Your Application

Folded seams are undesirable in the selected exhaust service.

Continuous TIG seams provide a welded shell along fabricated joints.

An exposed decorative finish adds unnecessary processing.

Mill finish retains the stainless surface without directional brushing.

Available Options

Custom straight lengths
Stainless access doors

Planning a Stainless Steel Welded Air Duct 304 Mill-Finish specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
