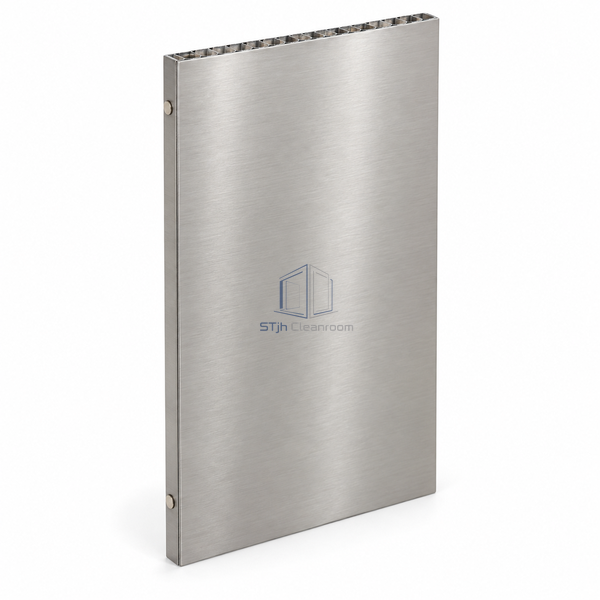

Stainless Steel Cleanroom Wall Liner Panel 10 mm Magnetic Stainless-Faced Honeycomb

Slim magnetic liner for upgrading an existing wall surface.

Thin overlay preserves interior floor space.
Cellular core supports a flat stainless face.
Magnetic mounting offers an alternative to direct cladding.

Request a Quote Browse Products

Product Introduction

Stainless steel faces bond to a nine-millimeter aluminum honeycomb center. The lightweight liner can be magnetically mounted, with neighboring edges meeting at a butt joint that receives a site seal.

Key Features

Thin overlay preserves interior floor space.
Cellular core supports a flat stainless face.
Magnetic mounting offers an alternative to direct cladding.

Technical Parameters

Panel Thickness	10 mm
Core Thickness	9 mm
Core Alloy	3003 aluminum
Cell Size	12.7 mm
Facing	Stainless steel
Standard Width	1200 mm
Standard Length	3000 mm
Mounting	Magnetic
Joint	Butt joint with site seal
Customization	Available for the intended existing wall and operating environment.

Applications

Existing-wall cleanroom upgrades
Slim stainless interior cladding

Solutions for Your Application

A second deep wall would reduce usable space.

The ten-millimeter liner overlays the existing structure.

A thin metal skin can appear uneven.

The honeycomb center supports it across the panel area.

Available Options

Direct cladding installation
Cut and shaped edge pieces

Planning a Stainless Steel Cleanroom Wall Liner Panel 10 mm Magnetic Stainless-Faced Honeycomb specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
