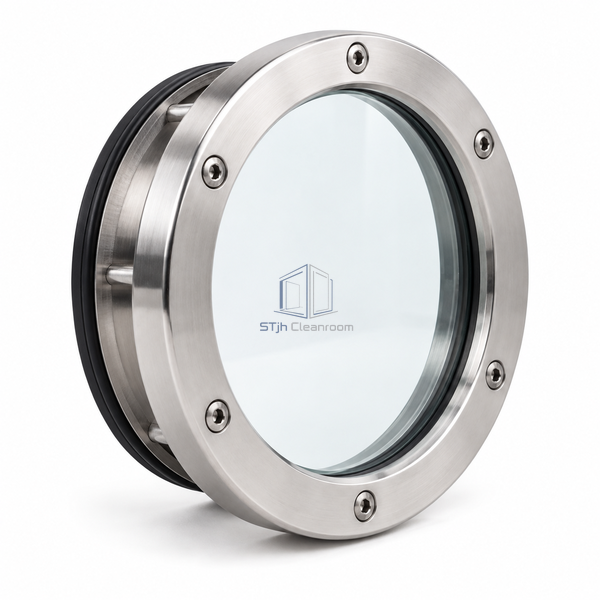

STjh 316 stainless compression-sealed observation window on white, with a polished surround and a visible dark perimeter gasket at the rear interface.

STJH-STAINLESS-STEEL-CLEANROOM-OBSERVATION-WINDOW-316-HIGH-CONTAINMENT

Stainless Steel Cleanroom Observation Window 316 Compression-Sealed High-Containment

A 316 stainless observation assembly with a mechanically compressed wall gasket for containment applications.

Mechanical compression applies the perimeter gasket against the wall interface.
316 stainless construction suits chemically demanding laboratory surroundings.
Concealed attachments keep the exposed reveal free of projecting fixing heads.

Request a Quote Browse Products

Product Introduction

A polished 316 stainless reveal encloses the window sub-frame and conceals its mechanical attachments. The frame compresses a gasket against the containment wall, establishing a defined sealing interface around the opening. Single- and double-glazed arrangements are available within this construction. The emphasis is on the window-to-wall connection as well as the glass itself, allowing a fixed observation point to be incorporated into a containment boundary without relying solely on a decorative trim joint.

Key Features

Mechanical compression applies the perimeter gasket against the wall interface.
316 stainless construction suits chemically demanding laboratory surroundings.
Concealed attachments keep the exposed reveal free of projecting fixing heads.

Technical Parameters

Frame Grade	316 stainless steel
Reveal Finish	Polished stainless steel
Wall Seal	Compression gasket
Seal Loading	Mechanical compression
Glazing Options	Single or double glazed
Support Assembly	Concealed sub-frame
Fixing Position	Within the sub-frame
Opening Function	Fixed containment observation
Wall Interface	Reveal and sub-frame matched to wall depth
Customization	Glazing arrangement and perimeter dimensions can be configured for the intended containment wall and operating environment.

Applications

Observation openings in high-containment laboratories
Research-room boundaries with mechanically sealed window interfaces

Solutions for Your Application

A cosmetic trim joint does not provide the specified mechanical wall seal.

Use the compression gasket and sub-frame arrangement to establish a loaded perimeter sealing interface.

Exposed fixing heads complicate wiping the reveal.

Conceal the attachments beneath the polished stainless reveal liners.

Available Options

Single-glazed construction
Double-glazed construction
Wall-specific reveal depth

Planning a Stainless Steel Cleanroom Observation Window 316 Compression-Sealed High-Containment specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
