Can a solid stainless door be specified without paper-based infill?
The selected blade uses bonded aluminum honeycomb beneath its stainless faces.
STJH-STAINLESS-STEEL-CLEANROOM-DOOR-304-ALUMINUM-HONEYCOMB

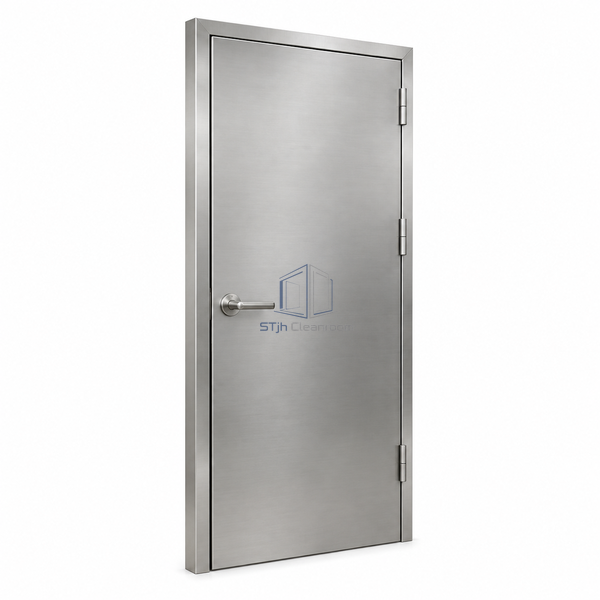

Stainless Steel Cleanroom Door 304 Aluminum-Honeycomb
An opaque 304 stainless door with metallic honeycomb reinforcement and a stainless-clad hollow-profile surround.
- Opaque construction screens process areas from the corridor.
- Stainless cladding continues across the door-to-wall surround.
- A perimeter gasket provides contact around the closed leaf.
Product Introduction
This configuration closes the doorway with a solid stainless blade rather than a glazed leaf. Aluminum honeycomb is bonded inside the panel, while the visible surfaces use AISI 304 stainless steel. The supporting surround employs a hollow-chamber profile covered by stainless sheet, bringing a cleanable metal finish to the partition junction. An ordinary single-action hinge arrangement allows the door to be operated manually without a sliding track or powered canopy above the opening.
Key Features
- Opaque construction screens process areas from the corridor.
- Stainless cladding continues across the door-to-wall surround.
- A perimeter gasket provides contact around the closed leaf.
Technical Parameters
| Blade Material | AISI 304 stainless steel faces |
|---|---|
| Blade Thickness | 50 mm |
| Infill | Bonded aluminum honeycomb |
| Leaf Count | One |
| Opening Mechanism | Manual single-action hinge |
| Frame Construction | Stainless-clad hollow-chamber profile |
| Viewing Opening | None |
| Seal Type | Perimeter cleanroom gasket |
| Exposed Finish | Natural brushed stainless steel |
| Customization | Available to match the operating environment and partition arrangement. |
Applications
- Opaque entrances to clean processing rooms.
- Material preparation rooms where visual screening is useful.
Solutions for Your Application
Can the frame remain metal-faced where it meets the wall?
Stainless cover sheet encloses the hollow supporting profile so the exposed surround matches the door material.
Available Options
- Lock-cylinder cover rosette.
- Overhead closer with a retracting bottom seal.
Planning a Stainless Steel Cleanroom Door 304 Aluminum-Honeycomb specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
