STJH-STAINLESS-STEEL-CLEANROOM-CRASH-RAIL-102-FLAT

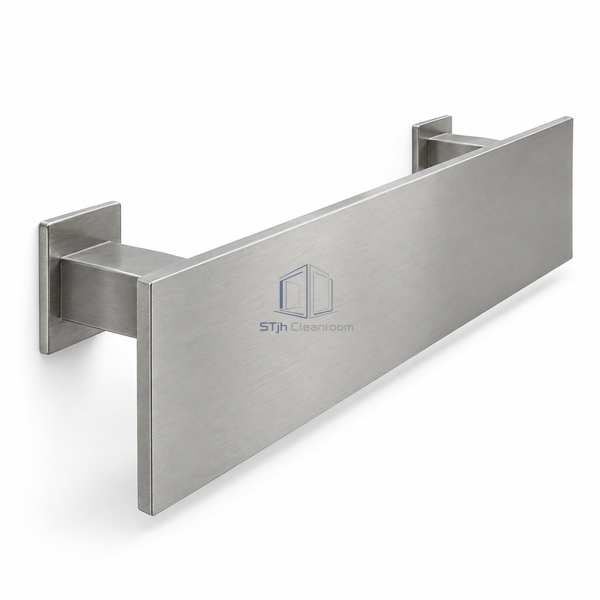

Stainless Steel Cleanroom Crash Rail 102 mm Flat-Bar

A flat stainless impact bar with concealed stand-off brackets for cleanroom corridors.

The deep flat face spreads contact over a broad vertical band.
Solid 6 mm plate provides a substantial rail section.
Concealed Z brackets leave the front face uncluttered.

Request a Quote Browse Products

Product Introduction

The rail uses a 102 mm high, 6 mm thick solid flat bar rather than a round tube. Reversible Z brackets support the face 76 mm from the wall, keeping the front plane free of projecting attachment heads.

Key Features

The deep flat face spreads contact over a broad vertical band.
Solid 6 mm plate provides a substantial rail section.
Concealed Z brackets leave the front face uncluttered.

Technical Parameters

Rail Height	102 mm
Bar Thickness	6 mm
Wall Stand-Off	76 mm
Material	304 stainless steel
Section	Solid flat bar
Bracket Design	Reversible Z bracket
Fixing Visibility	Concealed from front
Mounting Surface	Wall
Supply Format	Fabricated rail lengths
Customization	Available based on the intended application and operating environment.

Applications

Pharmaceutical corridor wall protection
Broad-face cart impact rails

Solutions for Your Application

A narrow round rail does not provide the desired broad contact band.

The 102 mm flat face covers a deeper vertical area.

Visible face fixings complicate wiping the rail.

Z brackets sit behind the solid bar.

Available Options

Required bar lengths
Matching fabricated returns

Planning a Stainless Steel Cleanroom Crash Rail 102 mm Flat-Bar specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
