Stainless Steel Cleanroom Corner Guard 51 mm Wing Screw-On

A full-height stainless corner guard with mechanical screw retention.

The tall format covers contact from equipment at different heights.
Mechanical attachment provides a positive fixing arrangement.

Request a Quote Browse Products

Product Introduction

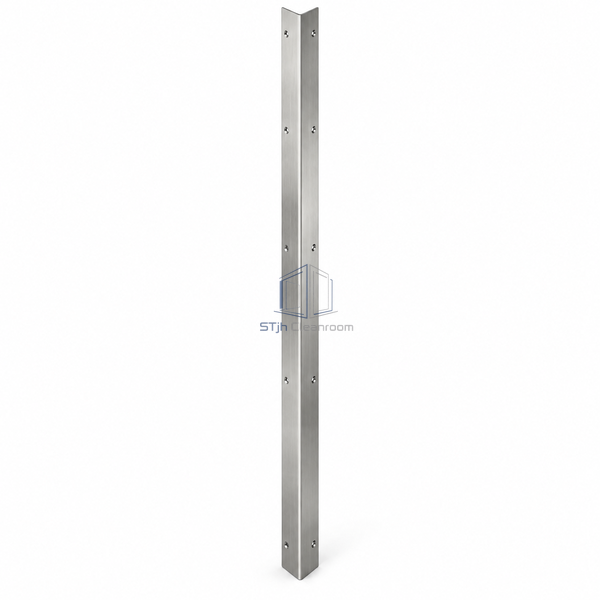

The bent stainless sheet has two equal wings and a small radius at the outside corner. Beveled fixing holes accept screws along the guard, attaching the cover to the wall backing.

Key Features

The tall format covers contact from equipment at different heights.
Mechanical attachment provides a positive fixing arrangement.

Technical Parameters

Wing Dimensions	51 x 51 mm
Overall Height	2438 mm
Stainless Grade	304
Material Gauge	16 gauge
Bend Angle	90 degrees
Corner Radius	Approximately 3.2 mm
Attachment	Screw-on
Profile Form	Two-wing sheet guard
Coverage Position	Full-height outside corner
Customization	Available based on the intended application and operating environment.

Applications

High-traffic cleanroom corridor returns
Tall equipment-contact wall corners

Solutions for Your Application

The wall finish conceals different backing materials along the corner.

Choose screws suited to the underlying substrate so each fixing engages the supporting material.

A slight lean is conspicuous over a tall vertical guard.

Set the guard plumb before fastening, using the corner line as the installation reference.

Available Options

Substrate-compatible fixings
Alternative guard lengths
