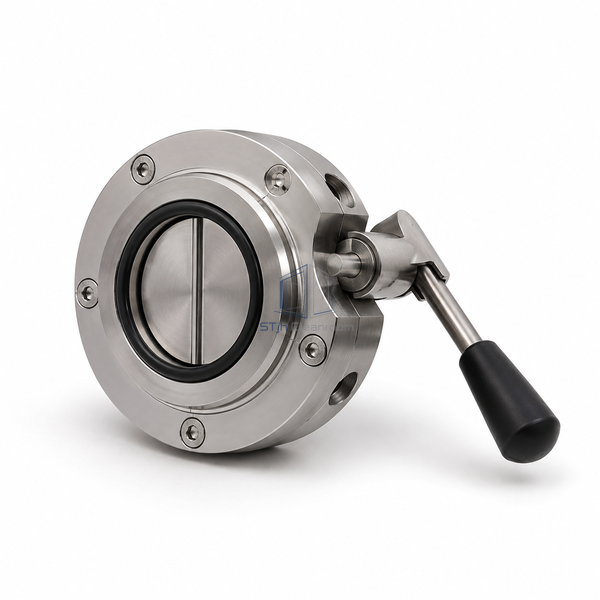

STjh DN100 lightweight split butterfly valve with a compact circular body and black manual grip on white

STJH-SPLIT-BUTTERFLY-VALVE-DN100-LIGHT

Split Butterfly Valve DN100 Lightweight

A portable DN100 split butterfly valve with a lightweight manual actuator for contained powder transfer across multiple small stations.

DN100 bore
3.3 kg-class actuator
Portable manual operation

Request a Quote Browse Products

Product Introduction

This DN100 model emphasizes mobility. The approximately 3.3 kg-class actuator ring can be moved between compatible half valves, allowing one operating component to serve several small vessels or processing points without the size of an automated assembly.

Key Features

Mobile actuator ring

The lightweight ring is intended for repeated manual docking at more than one process station.

Small-batch flow path

DN100 provides a contained opening for modest powder quantities and compact equipment connections.

Separated half valves

Compatible active and passive halves keep the transfer interfaces closed when the valve is undocked.

Technical Parameters

Nominal Size	DN100
Actuation	Manual portable actuator ring
Actuator Weight Class	Approximately 3.3 kg
Published Containment Class	1-10 µg/m³ under the manufacturer's stated test conditions
Valve Architecture	Split active and passive butterfly halves
Primary Material	Compatible metal half valves with lightweight actuator
Transfer Duty	Small contained powder batches
Station Use	One actuator serving multiple compatible points
Cleaning Approach	Disassembled component cleaning according to the process method
Customization	Half-valve connection, seal material and handling arrangement can be selected for the powder and equipment interface.

Applications

Contained charging and discharge between small bins, mills, blenders and portable process vessels at multiple manufacturing stations.

Solutions for Your Application

A fixed actuator at every small vessel adds weight and hardware.Use the portable DN100 actuator ring across compatible half-valve stations.

Operators must repeatedly lift and align the valve component.Keep docking height ergonomic and provide a support point when the transfer route requires frequent moves.

Available Options

Connection ferrules, seal materials, passive half-valves and portable handling accessories can be selected for the powder contact requirements.

Planning a Split Butterfly Valve DN100 Lightweight specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
