Legacy and newer credentials coexist during migration.
The two RF bands support compatible mixed credential populations.
STJH-SLIM-CLEANROOM-ACCESS-CONTROL-CARD-READER-DUAL-MOBILE

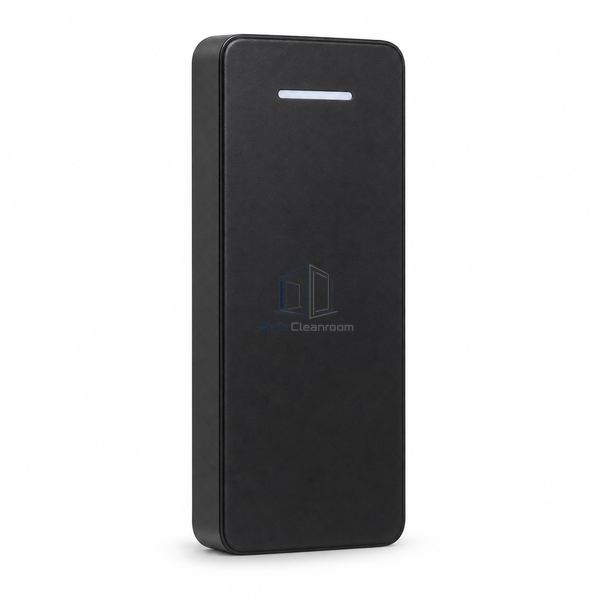

Slim Cleanroom Access Control Card Reader Dual-Frequency Mobile-Ready
Support mixed card technologies and mobile credentials with a slim dual-frequency reader.
- Dual frequencies support a staged credential transition.
- BLE and NFC add mobile presentation methods.
- A shallow housing reduces projection from the mounting surface.
Product Introduction
This reader combines low- and high-frequency credential electronics with BLE and NFC capabilities in one narrow housing. It connects to an external access controller through a compatible wired protocol and provides a contactless presentation area on its front face. The slim depth is useful at constrained door positions. Its role is to read supported credentials across several technologies, allowing a mixed population of physical cards and mobile devices within a compatible access platform.
Key Features
- Dual frequencies support a staged credential transition.
- BLE and NFC add mobile presentation methods.
- A shallow housing reduces projection from the mounting surface.
Technical Parameters
| RF Frequencies | 125 kHz and 13.56 MHz |
|---|---|
| Mobile Interfaces | BLE and NFC |
| Dimensions | 45 x 121.5 x 19.5 mm |
| Mounting | Mullion |
| Controller Protocols | OSDP or Wiegand |
| Credential Media | Compatible cards, fobs and mobile devices |
| Reader Type | Contactless multi-technology |
| Keypad | None |
| System Connection | External access-control panel |
| Customization | Credential support and connection settings can suit the intended access system. |
Applications
- Facilities migrating between credential types.
- Narrow cleanroom entrances offering mobile access.
Solutions for Your Application
The reader should not project far into a narrow approach.
The 19.5 mm-deep housing keeps the unit shallow.
Available Options
- Supported mobile credential setup.
- OSDP interface.
- Wiegand connection.
Planning a Slim Cleanroom Access Control Card Reader Dual-Frequency Mobile-Ready specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
