Existing staff credentials should remain usable.
Select the reader for the supported 125 kHz credential format.
STJH-SLIM-CLEANROOM-ACCESS-CONTROL-CARD-READER-125KHZ

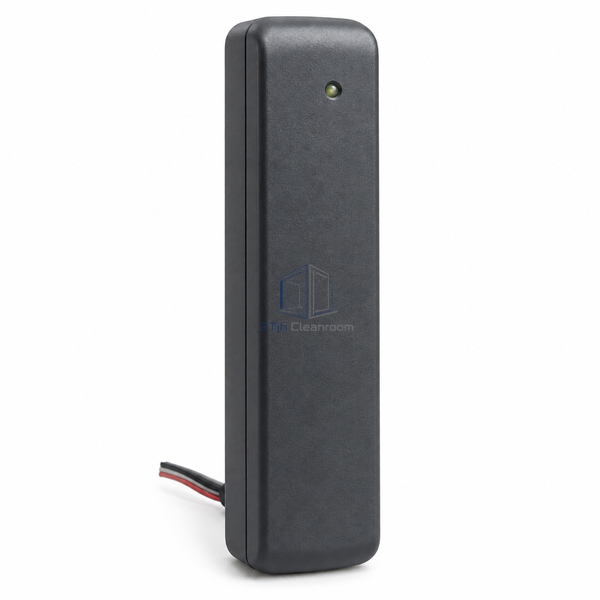

Slim Cleanroom Access Control Card Reader 125 kHz Mullion
Retain legacy proximity credentials with a narrow 125 kHz reader for door-mullion installation.
- Narrow footprint fits a door mullion.
- Potted electronics suit protected indoor or outdoor mounting.
- Host control can manage the LED and beeper.
Product Introduction
The reader packages a low-frequency proximity interface inside a slim, potted housing. Its wired connection carries credential data to an external access controller, while an LED and beeper provide local feedback. The elongated shape is designed for a narrow mounting surface at the door. This configuration is intended for existing 125 kHz credential systems and differs from high-frequency smart-card or dual-radio mobile readers in both electronics and housing proportions.
Key Features
- Narrow footprint fits a door mullion.
- Potted electronics suit protected indoor or outdoor mounting.
- Host control can manage the LED and beeper.
Technical Parameters
| Credential Frequency | 125 kHz |
|---|---|
| Mounting | Mullion |
| Dimensions | 152 x 43 x 25.4 mm |
| Power Supply | 5–16 VDC |
| Data Interface | Wiegand or clock-and-data |
| Electronics | Potted |
| Visual Feedback | Multicolour LED |
| Audible Feedback | Beeper |
| Credential Form | Compatible proximity cards or fobs |
| Customization | Interface and mounting arrangements can suit the existing credential system. |
Applications
- Legacy access-control replacements.
- Narrow door-frame reader positions.
Solutions for Your Application
The mullion is too narrow for a wall reader.
The elongated 43 mm-wide housing fits a smaller mounting footprint.
Available Options
- Wiegand output.
- Clock-and-data output.
- Pigtail or terminal connection.
Planning a Slim Cleanroom Access Control Card Reader 125 kHz Mullion specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
