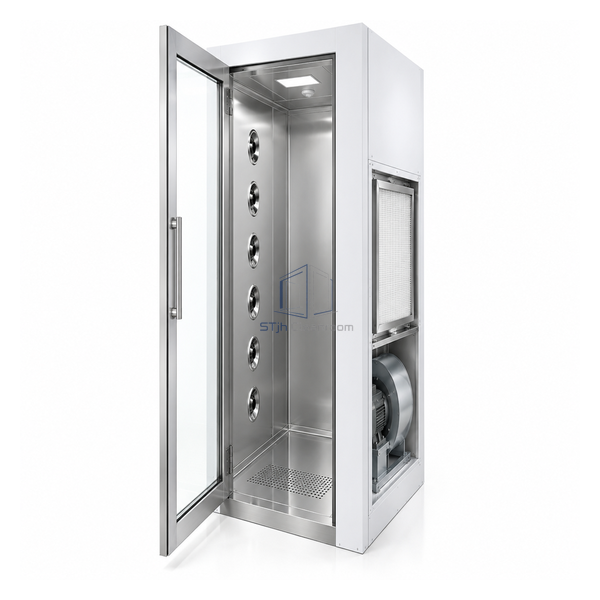

STjh shallow 1300 by 800 mm single-person air shower with six one-side nozzles and compact HEPA module

STJH-SINGLE-PERSON-AIR-SHOWER-1300X800-6NOZZLE

Single-Person Air Shower 1300 × 800 mm Six-Nozzle

A shallow one-person air shower for entries where corridor depth is more restricted than cabinet width.

800 mm shallow cabinet depth
750 mm internal depth
550 W single-side blower

Request a Quote Browse Products

Product Introduction

This model uses a 1300 x 800 x 2050 mm exterior to reduce chamber depth to 800 mm. The internal path is 800 x 750 x 1920 mm, served by one six-nozzle side bank, a 550 W blower and a 550 x 610 x 120 mm HEPA cell. Its shallow geometry is materially different from the two 1000 mm deep single-person cabinets.

Key Features

Reduced projection

The 800 mm enclosure depth limits intrusion into a narrow gowning corridor.

Wide service side

A 1300 mm exterior accommodates the 550 x 610 mm filter and one-wall jet system.

Compact personnel cycle

Six directed nozzles address a single operator within the short 750 mm chamber.

Technical Parameters

External Dimensions	1300 x 800 x 2050 mm
Internal Dimensions	800 x 750 x 1920 mm
Capacity	One person
Blowing Layout	Single side
Nozzle Quantity	6
Blower Input	550 W
HEPA Filter Size	550 x 610 x 120 mm, one piece
Flow Sequence	Straight-through personnel cycle
Installation Priority	Shallow corridor projection
Customization	Available based on the intended application and operating environment.

Applications

Best for shallow personnel airlocks, compact gowning transitions and clean entrances where the available depth is less than one metre. Confirm that the 750 mm passage depth is compatible with the planned door swing.

Solutions for Your Application

A conventional 1000 mm deep chamber blocks the corridor.Use the 800 mm deep exterior and orient the wider mechanical side along the wall.

The shorter blow path may require careful jet aiming.Direct the six adjustable nozzles toward the operator's garment surfaces and validate the chosen cycle time.

Available Options

Specify enclosure material, door handing, viewing panels, timer, light and entry controls. Door geometry should be reviewed against the shallow passage.
