STJH-SINGLE-MGO-ROCK-WOOL-CLEANROOM-PANEL-75-HANDMADE

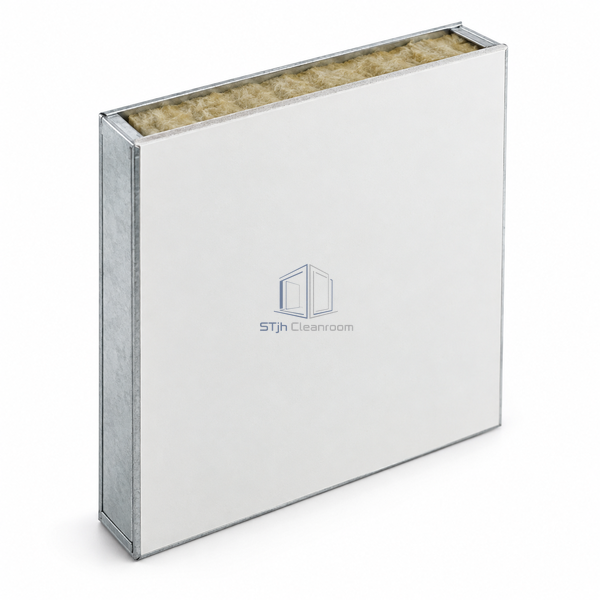

Single MgO Rock Wool Cleanroom Panel 75 mm Handcrafted

Individually framed partition module with a reinforced clean-side liner.

Metal end closures protect cut core edges.
A single board supports the selected process face.

Request a Quote Browse Products

Product Introduction

Galvanized edge members surround a rock-wool panel backed on one side by MgO. This handcrafted construction combines a defined perimeter with a medium-depth internal mineral section.

Key Features

Metal end closures protect cut core edges.
A single board supports the selected process face.

Technical Parameters

Core Material	Single MgO and rock wool
Panel Thickness	75 mm
Effective Width	980 or 1180 mm
Maximum Length	6000 mm wall panel
Steel Facing Thickness	0.4–0.8 mm
Core Density	100–120 kg/m³
Liner Count	One MgO board
Surface Finish	Pre-coated steel
Joint Type	Framed modular connection
Customization	Available to suit the intended application and operating environment.

Applications

Custom-height laboratory walls
Process-facing partition modules

Solutions for Your Application

A site-cut edge leaves exposed fibers around an opening.

Handcrafted modules permit enclosed perimeter details at fabrication.

The reinforced side may be installed backwards.

The asymmetric build-up is defined with the process face when ordering.

Available Options

Opening preparation
Module width selection

Planning a Single MgO Rock Wool Cleanroom Panel 75 mm Handcrafted specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
