STJH-SINGLE-MGO-ROCK-WOOL-CLEANROOM-PANEL-100-CEILING

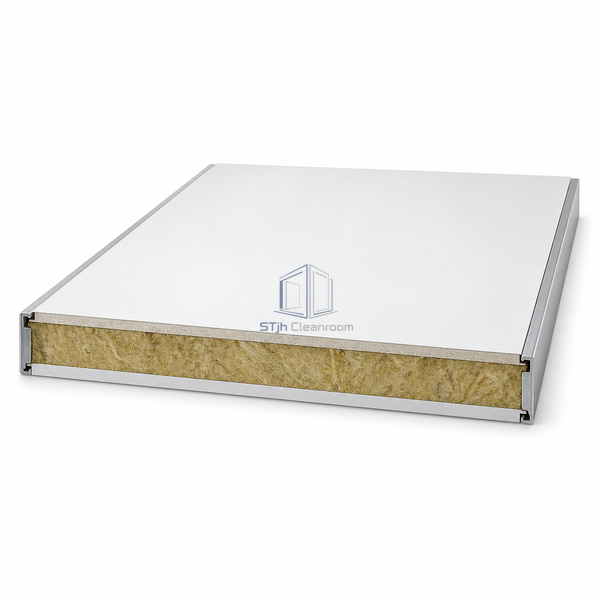

Single MgO Rock Wool Cleanroom Panel 100 mm Ceiling

Deep ceiling infill with a single mineral liner behind the room face.

Room-side mineral board backs the lower skin.
Closed perimeter defines equipment-interface edges.

Request a Quote Browse Products

Product Introduction

The overhead module uses a rock-wool center and one MgO backing sheet within framed metal edges. Its ceiling format follows a shorter length range than tall wall panels.

Key Features

Room-side mineral board backs the lower skin.
Closed perimeter defines equipment-interface edges.

Technical Parameters

Core Material	Rock wool and one MgO liner
Panel Thickness	100 mm
Effective Width	980 or 1180 mm
Maximum Length	3000 mm
Steel Facing Thickness	0.4–0.8 mm
Core Density	100–120 kg/m³
Panel Format	Framed ceiling module
Surface Finish	Coated steel
Joint Type	Sealed framed ceiling connection
Customization	Available based on the intended use and operating environment.

Applications

Cleanroom overhead infill
Ceilings around planned service apertures

Solutions for Your Application

A tall wall component is awkward to use above the room.

The ceiling format limits manufactured length to the overhead module range.

The underside skin needs a rigid backing.

The MgO liner supports that face without adding a second board above.

Available Options

Factory aperture positioning
Custom ceiling lengths

Planning a Single MgO Rock Wool Cleanroom Panel 100 mm Ceiling specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
