STJH-SINGLE-DUCT-VAV-REHEAT-TERMINAL-DN200-ELECTRIC

Single-Duct VAV Reheat Terminal Unit DN200 Electric

DN200 variable-air-volume terminal with electric reheat where water piping is unavailable.

Electric heat avoids a local hydronic branch.
Separate heater enclosure keeps power components accessible.

Request a Quote Browse Products

Product Introduction

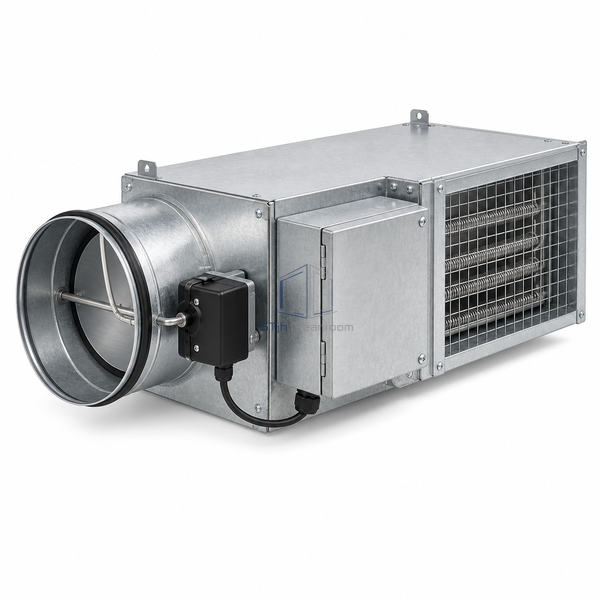

The larger round inlet leads into a controlled damper section followed by a resistance heater. An electrical enclosure houses the heater controls, replacing the water pipe connections used on hydronic versions.

Key Features

Electric heat avoids a local hydronic branch.
Separate heater enclosure keeps power components accessible.

Technical Parameters

Nominal Inlet Diameter	200 mm
Terminal Arrangement	Single-duct VAV
Reheat Type	Electric resistance
Heating Element	Low-watt-density nickel-chromium
Thermal Protection	Automatic and manual reset cutouts
Airflow Interlock	Airflow switch
Air Regulation	Pressure-independent damper control
Heat Control Options	Staged or SCR modulation
Body Material	Galvanized sheet steel
Customization	Heater and controls can be configured for the intended electrical service and zone.

Applications

Zones without hot-water distribution
Controlled-room electric temperature trim

Solutions for Your Application

Bringing heating water to the ceiling terminal is impractical.

The integral resistance-heating section supplies local reheat through an electrical connection.

Available Options

Discharge-temperature control
Bottom-mounted electrical enclosure

Planning a Single-Duct VAV Reheat Terminal Unit DN200 Electric specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
