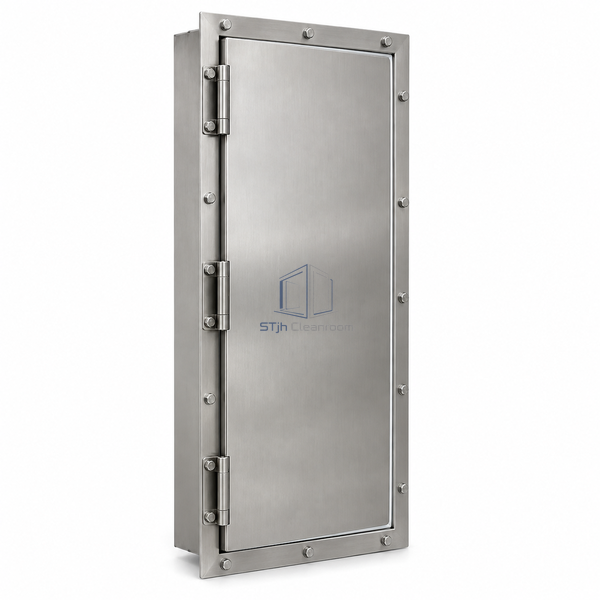

STjh 21 x 45 in elongated stainless explosion-relief door with a hinged rectangular panel and bolt-on frame on white.

STJH-SELF-RECLOSING-EXPLOSION-VENTING-DOOR-21X45

Self-Reclosing Explosion Venting Door 21 x 45 in Stainless Explosion-Relief

An elongated 316 stainless equipment relief door with a 21 x 45 in hinged panel and silicone seal.

Long rectangular geometry accommodates narrow, extended vessel openings.
316 stainless metalwork provides a defined material choice for corrosive process surroundings.
An attached hinged panel remains associated with its frame after opening.

Request a Quote Browse Products

Product Introduction

A tall rectangular panel gives this equipment door a different mounting footprint from the compact square hatch. The assembly combines 316 stainless construction, a bolted frame and a silicone sealing interface. Its hinged panel is intended to return after relief rather than operate as a disposable rupture sheet. The panel dimensions describe the closure, not the full external flange. The surrounding vessel must accommodate the frame and moving panel, with the vent path directed away from occupied work areas.

Key Features

Long rectangular geometry accommodates narrow, extended vessel openings.
316 stainless metalwork provides a defined material choice for corrosive process surroundings.
An attached hinged panel remains associated with its frame after opening.

Technical Parameters

Assembly Type	Returning equipment relief door
Panel Width	21 in
Panel Height	45 in
Panel Geometry	Elongated rectangle
Construction Material	316 stainless steel
Attachment	Bolt-on frame
Seal	Silicone gasket
Opening Action	Hinged panel
Installation Interface	Process vessel or equipment housing
Customization	Available to suit the process vessel and installation conditions.

Applications

Rectangular connections on dust collectors
Larger process vessels with elongated relief openings

Solutions for Your Application

A square hatch does not match the vessel's available face.

The 21 x 45 in format provides an alternative aspect ratio without changing the product into a personnel door.

Aggressive surroundings may attack ordinary steel surfaces.

The specified 316 stainless construction gives the purchaser a clear material basis for compatibility assessment.

Available Options

Remote opening-status switch
Restraint cable option
Strip heating for installations exposed to icing

Planning a Self-Reclosing Explosion Venting Door 21 x 45 in Stainless Explosion-Relief specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
