The existing vessel face has limited mounting space.
The square panel minimizes one-sided projection; the separate frame envelope must still be included in the fit assessment.
STJH-SELF-RECLOSING-EXPLOSION-VENTING-DOOR-12X12

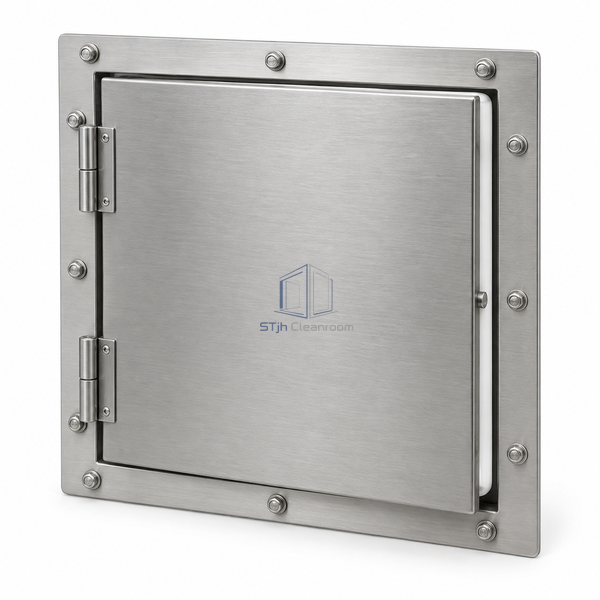

Self-Reclosing Explosion Venting Door 12 x 12 in Stainless Explosion-Relief Hatch
A compact 304 stainless relief hatch with a 12 x 12 in panel and bolt-on equipment connection.
- Square proportions fit compact vessel faces.
- Bolted attachment allows the assembly to be separated from its mounting interface.
- 304 stainless construction avoids relying on a painted exposed panel.
Product Introduction
The square panel suits equipment layouts where a long relief door would obstruct nearby connections. A hinged stainless closure sits within a bolt-on frame, with silicone at the sealing interface. This is a reusable equipment pressure-relief format with a compact footprint, not an access door for a room. The 12 x 12 in dimension identifies the panel; the mounting opening and outer frame require additional space. Vent area, operating conditions and discharge direction must be considered together when selecting the assembly.
Key Features
- Square proportions fit compact vessel faces.
- Bolted attachment allows the assembly to be separated from its mounting interface.
- 304 stainless construction avoids relying on a painted exposed panel.
Technical Parameters
| Product Form | Equipment relief hatch |
|---|---|
| Panel Width | 12 in |
| Panel Height | 12 in |
| Panel Shape | Square |
| Metal Grade | 304 stainless steel |
| Mounting | Bolt-on frame |
| Panel Movement | Hinged |
| Sealing Material | Silicone |
| Construction Format | Reusable returning panel |
| Customization | Available for the vessel geometry and operating environment. |
Applications
- Compact dust-handling equipment
- Small process-vessel relief connections
Solutions for Your Application
A painted closure would add another surface to maintain.
Use the 304 stainless panel and frame with a finish suited to the equipment cleaning routine.
Available Options
- Door-opening indication switch
- Protective cage where the installation requires one
- Food-contact-compatible silicone gasket option
Planning a Self-Reclosing Explosion Venting Door 12 x 12 in Stainless Explosion-Relief Hatch specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
