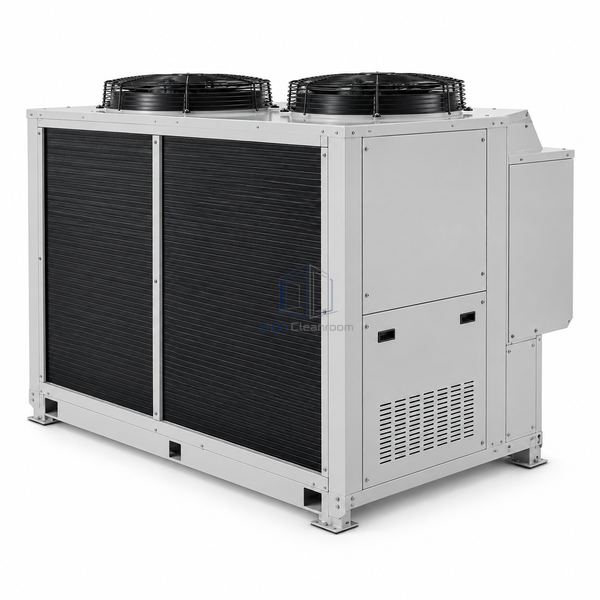

STjh 66 kW air-cooled scroll chiller with a broader condenser housing and enlarged compressor section on white.

STJH-SCROLL-COMPRESSOR-CHILLER-66KW

Air-Cooled Scroll Chiller 66 kW

A medium 20-ton-class scroll chiller producing 66.1 kW with a 19.1 kW compressor and 2.9 kW condenser fan input.

66.1 kW cooling output
20-ton nominal class
21.9 kW published total input

Request a Quote Browse Products

Product Introduction

The 66.1 kW configuration enlarges the compressor and condenser package for medium clean production or controlled-storage loops. Its published total input rises to 21.9 kW, providing a clear intermediate duty between the compact 37 kW model and the larger 82 kW selection.

Key Features

Medium utility capacity

The 66.1 kW duty can serve several process loads or a medium controlled area from one packaged unit.

Larger scroll compressor

The 19.1 kW compressor differentiates this machine from the smaller 10-ton-class chassis.

Outdoor packaged operation

Air-cooled heat rejection removes the need for an indoor condenser-water plant.

Technical Parameters

Cooling Capacity	66.1 kW
Nominal Size	20-ton class
Compressor Power	19.1 kW
Condenser Fan Power	2.9 kW
Total Input	21.9 kW
Compressor	Scroll
Condenser	Air-cooled coil
Chilled-Water Control	Leaving-water temperature regulation
Installation	Outdoor base
Customization	Hydronic package, ambient controls and monitoring can be configured for the intended application and operating environment.

Applications

Medium clean production support, controlled storage cooling, pharmaceutical utilities and multi-tool chilled-water loops.

Solutions for Your Application

The local cooling load exceeds the compact 37 kW machine during simultaneous operation.Use the 66.1 kW selection after confirming diversity and design water temperatures.

Outdoor ambient swings can affect leaving-water stability.Select suitable fan and low-ambient controls and maintain the required system water volume.

Available Options

Pump and tank package, freeze protection, coil coating, low-ambient control, isolation valves, remote alarms and communication are available.
