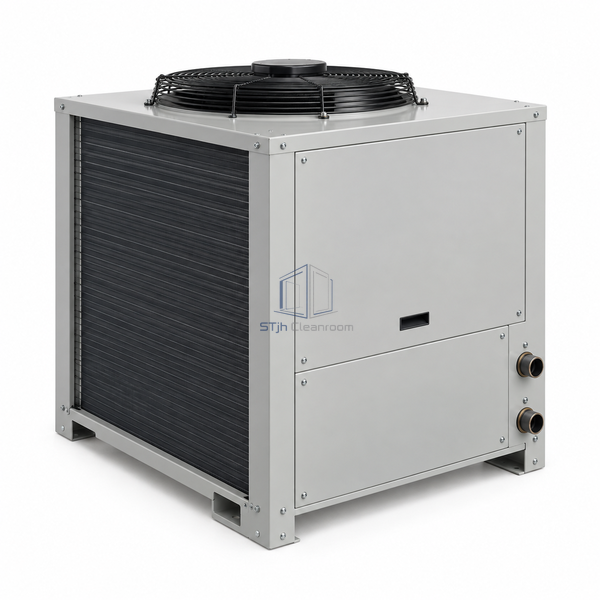

STjh 37 kW air-cooled scroll chiller with a compact condenser and short refrigeration bay on white.

STJH-SCROLL-COMPRESSOR-CHILLER-37KW

Air-Cooled Scroll Chiller 37 kW

A compact 10-ton-class air-cooled scroll chiller delivering 36.8 kW with 10.7 kW compressor and 1.2 kW fan input.

36.8 kW cooling capacity
10-ton nominal class
Approximately 12.0 kW total input

Request a Quote Browse Products

Product Introduction

This smallest selected scroll chiller provides 36.8 kW for laboratory tools and local cleanroom process loops. A 10.7 kW compressor and 1.2 kW condenser fan keep the package compact while rejecting heat directly to outdoor air.

Key Features

Local process-loop sizing

The compact capacity suits one tool group or laboratory loop without forcing a central-size chiller to cycle.

Simple air-cooled rejection

The condenser fan removes heat without cooling-tower piping or water treatment.

Compact scroll package

Scroll compression supports a small outdoor chassis with straightforward packaged controls.

Technical Parameters

Cooling Capacity	36.8 kW
Nominal Size	10-ton class
Compressor Power	10.7 kW
Condenser Fan Power	1.2 kW
Total Input	Approximately 12.0 kW
Compressor Type	Scroll
Heat Rejection	Air-cooled condenser
Water Circuit	Process chilled-water connection
Installation	Outdoor packaged unit
Customization	Leaving-water condition, pump accessories and controls can be configured for the intended application and operating environment.

Applications

Small cleanroom process tools, laboratory chilled-water loops, pilot equipment cooling and controlled storage support systems.

Solutions for Your Application

A central chiller is unnecessarily large for one local process loop.Use the 36.8 kW package near the served load and keep distribution piping short.

The facility has no condenser-water infrastructure for a small utility system.Use outdoor air-cooled heat rejection and preserve clear condenser intake and discharge paths.

Available Options

Integrated pump, buffer tank, freeze protection, low-ambient kit, remote setpoint, flow switch and communication gateway can be selected.

Planning a Air-Cooled Scroll Chiller 37 kW specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
