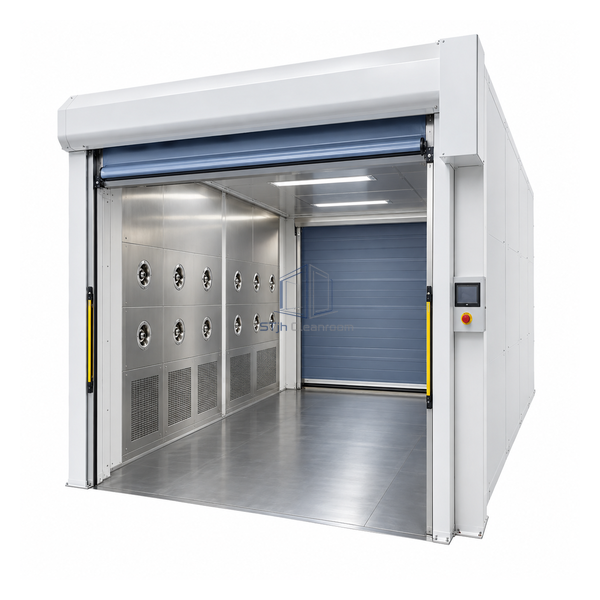

STjh 2000 mm deep cargo air shower for standard forklifts with a raised high-speed roll-up entrance curtain

STJH-ROLL-UP-DOOR-CARGO-AIR-SHOWER-STANDARD-FORKLIFT

Cargo Air Shower High-Speed Roll-Up Door Standard-Forklift

A four-fan roll-up-door cargo shower for routine standard-forklift and pallet transfer.

1500 x 1900 mm load passage
Four 750 W fans
0-99 s adjustable cycle

Request a Quote Browse Products

Product Introduction

The standard-forklift model increases internal depth to 1900 mm and uses four 750 W fan sections, doubling the air-delivery hardware of the compact version. High-speed doors coordinate a 0-99 second adjustable shower cycle without occupying the loading aisle. The longer chamber accepts routine palletized loads while remaining smaller than the three-metre large-forklift configuration.

Key Features

Standard pallet depth

The 1900 mm internal travel length provides an enclosed zone for common forklift-borne loads.

Expanded jet capacity

Four fan sections distribute airflow along the two-metre body rather than concentrating it near one doorway.

Programmable rapid doors

Roll-up closures and adjustable timing support repeatable material movement during regular production.

Technical Parameters

Overall Dimensions	2300 W x 2000 D x 2300 H mm
Clear Internal Zone	1500 W x 1900 D x 2000 H mm
Intended Vehicle	Standard forklift
Closure	High-speed roll-up doors
Fan Modules	4
Installed Fan Power	4 x 750 W
Shower Timer	0-99 s adjustable
Typical Load	Palletized production materials
Operating Layout	Straight-through cargo airlock
Customization	Available based on the intended application and operating environment.

Applications

Intended for recurring pallet deliveries to pharmaceutical, electronics and controlled assembly areas. Loading procedures should center the pallet between jet walls and prevent the truck or load from contacting the fast-door guides.

Solutions for Your Application

The small chamber does not enclose a standard pallet and forklift safely.Use the 1900 mm internal depth and confirm the full vehicle-plus-load envelope before ordering.

A fixed cycle wastes time on lightly contaminated loads or underserves dusty ones.Set the timer within the 0-99 second range for the actual transfer procedure and material surface.

Available Options

Specify door speed, presence sensors, warning beacon, interlock logic, floor finish and fan controls. Turning space and overhead mast clearance remain facility layout requirements.

Planning a Cargo Air Shower High-Speed Roll-Up Door Standard-Forklift specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
