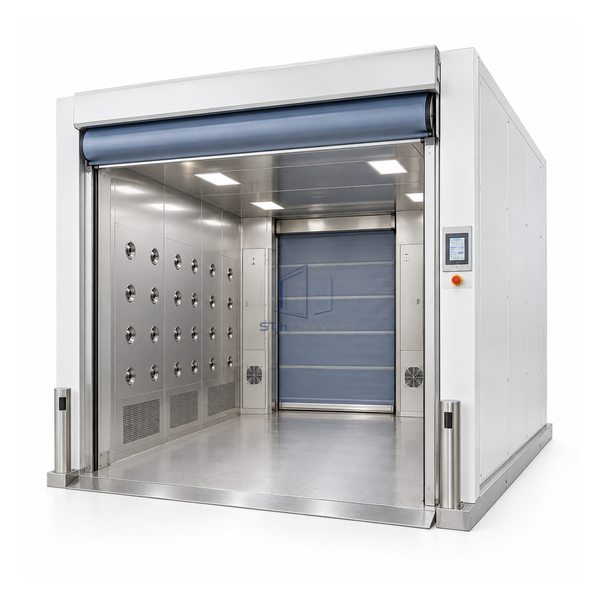

STjh shallow cargo air shower for small forklifts with a raised high-speed roll-up curtain and overhead roller hood

STJH-ROLL-UP-DOOR-CARGO-AIR-SHOWER-SMALL-FORKLIFT

Cargo Air Shower High-Speed Roll-Up Door Small-Forklift

A short high-speed roll-up-door cargo shower sized for compact forklifts and small pallet loads.

1500 x 900 mm internal route
Two 750 W fan sections
High-speed roll-up doors

Request a Quote Browse Products

Product Introduction

This one-metre-deep cargo chamber provides a 1500 x 900 x 2000 mm internal route for compact forklift transfers. Two 750 W fan sections, each listed at 1300 m³/h, recirculate filtered air around the load while roll-up doors preserve approach clearance. It is the smallest forklift model and should be chosen only after checking truck mast, load width and turning geometry.

Key Features

Compact pallet airlock

The 900 mm internal depth minimizes the chamber footprint for small, repeatable load envelopes.

Vertical door storage

Roll-up curtains open above the passage and do not require swing or side-pocket clearance.

Two-section air delivery

Twin fan units provide the recirculating jet supply for a short cargo cycle.

Technical Parameters

External Dimensions	2300 W x 1000 D x 2300 H mm
Internal Dimensions	1500 W x 900 D x 2000 H mm
Load Category	Small forklift and compact pallet
Door Type	Automatic high-speed roll-up
Fan Quantity	2
Fan Motor Power	2 x 750 W
Airflow per Fan	1300 m³/h
Air Treatment	Recirculating filtered high-velocity blow-off
Transfer Direction	Straight-through cargo passage
Customization	Available based on the intended application and operating environment.

Applications

For compact pallet movements into food, electronics or pharmaceutical support zones where conventional hinged doors would obstruct the loading aisle. Measure the complete truck and load envelope rather than nominal pallet size alone.

Solutions for Your Application

A conventional cargo chamber consumes excessive floor space for small loads.Use the 1000 mm external depth when the validated forklift and pallet fit the 1500 x 900 mm route.

Door leaves would collide with the forklift mast or approach path.Select roll-up closures that retract above the clear opening during entry and exit.

Available Options

Define curtain material, sensors, warning devices, floor protection, controls and cabinet finish. Confirm forklift exhaust, load stability and safe driver procedure for the enclosed passage.

Planning a Cargo Air Shower High-Speed Roll-Up Door Small-Forklift specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
