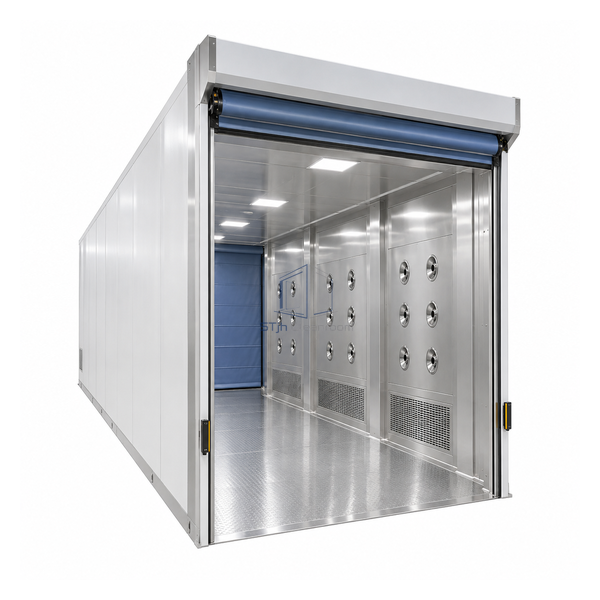

STjh large-forklift roll-up-door cargo air shower with a 3000 mm chamber and three repeated fan sections

STJH-ROLL-UP-DOOR-CARGO-AIR-SHOWER-LARGE-FORKLIFT

Cargo Air Shower High-Speed Roll-Up Door Large-Forklift

The longest roll-up-door cargo shower in the family, with six fan sections for large forklift loads.

1500 x 2900 mm internal passage
Six 750 W fan sections
Large-forklift load envelope

Request a Quote Browse Products

Product Introduction

This large-load configuration extends the internal passage to 2900 mm and installs six 750 W fan sections along the chamber. The high-speed roll-up doors clear the forklift approach vertically, while the three-metre cabinet encloses longer pallets than the small and standard versions. Its higher connected load and length must be included in electrical, structural and material-flow planning.

Key Features

Extended load enclosure

The 2900 mm internal depth provides room for large forklifts or long palletized items within the shower zone.

Distributed six-fan system

Additional air sections spread high-velocity treatment across the longer cargo surfaces.

Clear vertical door path

Roll-up leaves avoid the large swing radius that wide cargo doors would otherwise require.

Technical Parameters

Equipment Size	2300 W x 3000 D x 2300 H mm
Usable Chamber	1500 W x 2900 D x 2000 H mm
Cargo Class	Large forklift or extended load
Door Arrangement	Automatic high-speed roll-up
Fan Count	6
Fan Rating	6 x 750 W
Cycle Duration	0-99 s adjustable
Airflow Method	Sectional recirculating filtered jets
Passage	Straight-through heavy cargo route
Customization	Available based on the intended application and operating environment.

Applications

For long skids, large pallets and higher-volume material entry to controlled manufacturing areas. Confirm wheel loads, floor flatness, mast height, driver visibility and emergency exit provisions across the full three-metre enclosure.

Solutions for Your Application

A long load projects outside a smaller chamber during the shower cycle.Use the 2900 mm internal depth so the validated cargo envelope remains within the active zone.

The larger fan bank may exceed the available electrical feeder capacity.Size the supply and controls for six 750 W fan sections before installation.

Available Options

Configure curtain type, door controls, presence detection, warning systems, floor treatment and fan sequencing. Site engineering should verify vehicle clearances and operational safety around the long chamber.

Planning a Cargo Air Shower High-Speed Roll-Up Door Large-Forklift specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
