Cleaning water can enter an ordinary indoor call point.
The sealed surface enclosure uses the IP67 construction specified for this variant.
STJH-RESETTABLE-EMERGENCY-DOOR-RELEASE-BUTTON-IP67
Resettable Emergency Door Release Button IP67 Wash-Down
A sealed green resettable release for wet cleaning locations, with an over-centre element and visible activation flag.
- Sealed housing addresses water exposure at the release position.
- Activation flag remains visible without relying on an illuminated display.
- Over-centre mechanism gives a definite change between resting and operated positions.
Product Introduction

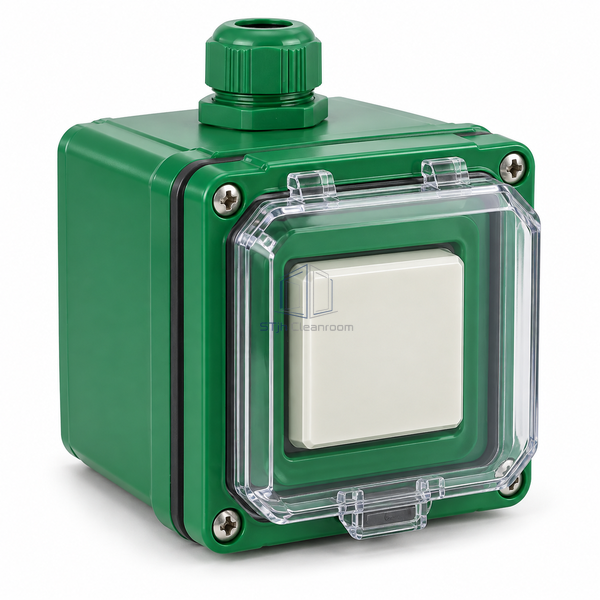

The wash-down release encloses its switching mechanism in a deeper sealed surface housing. A rigid plastic element works against an over-centre spring, giving a positive operating action without a disposable glass insert. A visible flag identifies activation, and key reset restores the element. The enclosure is suited to door-side positions exposed to wet cleaning, with cable entry arranged through the surface box rather than through an open flush assembly.
Key Features
- Sealed housing addresses water exposure at the release position.
- Activation flag remains visible without relying on an illuminated display.
- Over-centre mechanism gives a definite change between resting and operated positions.
Technical Parameters
| Contact Type | Double-pole changeover |
|---|---|
| Ingress Protection | IP67 |
| Overall Dimensions | 90 × 89 × 72 mm |
| Mounting Method | Surface mounting |
| Operating Element | Rigid resettable plastic element |
| Actuation Mechanism | Over-centre spring |
| Status Display | Mechanical activation flag |
| Operating Temperature | -20 to +65 °C |
| Reset | Key-operated manual reset |
| Customization | Cable entry and mounting accessories can be selected for the intended cleaning environment. |
Applications
- Emergency release locations beside wash-down access doors.
- Wet service areas connected to hygienic production facilities.
Solutions for Your Application
Staff need to see whether the release has operated when indication power is unavailable.
A mechanical flag shows the activated condition directly.
Available Options
- Protective front cover.
- Compatible sealed cable-entry accessories.
- Spare reset keys.
Planning a Resettable Emergency Door Release Button IP67 Wash-Down specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
