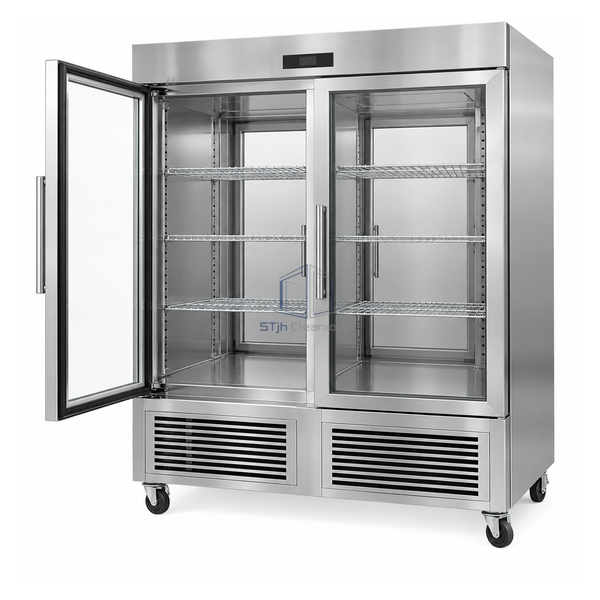

STjh 50 cubic foot double-bay pass-through refrigerator with two front glass doors and six shelves

STJH-REFRIGERATED-PASS-BOX-50CUFT-2TO8C

Refrigerated Pass Box 50 cu ft Straight-Through

A two-bay 1415 L refrigerated transfer cabinet offering more shelf separation and access frontage than the compact model.

1415 L two-bay interior
Four opposite-side glass doors
Six adjustable storage shelves

Request a Quote Browse Products

Product Introduction

The 50 cu ft cabinet doubles the nominal volume of the single-bay model and divides access across two keyed glass doors on each face. Six shelves help separate product groups, batches or destinations within the 1415 L interior. Stainless construction and hydrocarbon refrigerant suit medium-volume pharmacy and laboratory cold-transfer routes.

Key Features

Separated access bays

Two doors per side reduce the opening area needed to reach one section of stored material.

Higher shelf capacity

Six shelves provide distinct locations for batches, departments or temperature-sensitive product groups.

Straight-through workflow

Opposite faces allow receiving and dispatch staff to work without crossing the controlled boundary.

Technical Parameters

Nominal Capacity	50 cu ft / 1415 L
Temperature Range	2–8 °C
External Dimensions	52 x 37.5 x 81.5 in
Internal Dimensions	48 x 30 x 59 in
Door Arrangement	Four keyed glass doors, two front and two back
Shelves	Six
Construction	Stainless steel interior and exterior
Refrigerant	R290
Electrical	115 V, 60 Hz, single phase; 8.0 running A
Customization	Available based on the intended application and operating environment.

Applications

For medium-volume laboratories, hospital pharmacies and production support areas requiring refrigerated handoff with shelf-level separation between adjacent rooms.

Solutions for Your Application

Opening one large door releases excess cold air when only a small load is needed.Use the two-bay door arrangement to access a smaller section of the cabinet.

Mixed batches are difficult to organize in a single narrow compartment.Allocate the six shelves by product family, route or release status.

Available Options

Specify door handing, keyed access plan, temperature recorder, remote alarms, probe ports and interface trim. Confirm placement clearances for the 52 inch cabinet width.

Planning a Refrigerated Pass Box 50 cu ft Straight-Through specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
