STJH-RECTANGULAR-ELBOW-SILENCER-90NM-NOMEDIA

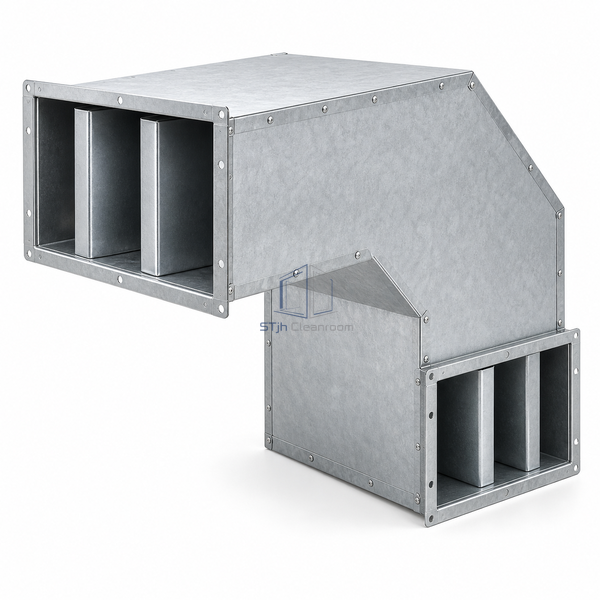

Rectangular Elbow Silencer 90-Degree No-Media

A right-angle acoustic duct component without fibrous fill.

No fibrous packing is present in the acoustic elements.
Metal internal surfaces are available for inspection and cleaning.

Request a Quote Browse Products

Product Introduction

Engineered hollow metal passages provide the no-media acoustic arrangement while turning the air. The absence of glass-fibre fill distinguishes this elbow from dissipative and film-lined versions and suits duct routes where fill material is undesirable.

Key Features

No fibrous packing is present in the acoustic elements.
Metal internal surfaces are available for inspection and cleaning.

Technical Parameters

Direction Change	90 degrees
Cross-Section Form	Rectangular
Silencing Type	No-media
Fill Material	None
Internal Surface	Sheet metal
Passage Geometry	Engineered turning splitters
Casing Material	Galvanized steel; stainless steel optional
Duct Interface	Rectangular end connections
Energy Supply	None required
Customization	Available for the intended contamination-sensitive duct route and acoustic requirements.

Applications

Duct bends where fibrous fill is excluded
Contamination-sensitive ventilation routes

Solutions for Your Application

The application excludes fibrous sound-absorbing media.

The no-fill construction removes that material from the assembly.

Acoustic internals need to remain inspectable.

The metal passage surfaces can be reached through a suitable access arrangement.

Available Options

Stainless steel casing
Inspection access
Flanged ends

Planning a Rectangular Elbow Silencer 90-Degree No-Media specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
