Rectangular Elbow Silencer 90-Degree Dissipative

Noise attenuation and a right-angle direction change in one duct component.

The combined bend and attenuator uses a constrained duct corner.
Shaped splitter noses guide the flow into the turn.

Request a Quote Browse Products

Product Introduction

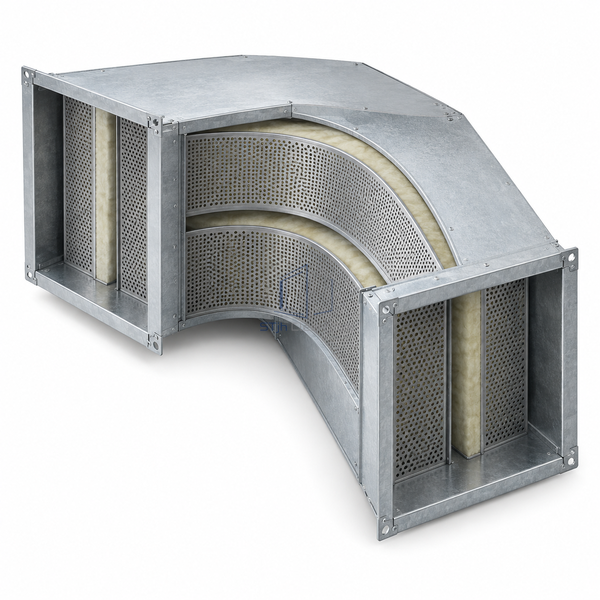

Curved acoustic splitters guide air around the bend. Glass-fibre fill behind perforated metal dissipates acoustic energy, allowing the elbow to provide sound treatment where there is insufficient room for a separate straight silencer.

Key Features

The combined bend and attenuator uses a constrained duct corner.
Shaped splitter noses guide the flow into the turn.

Technical Parameters

Bend Angle	90 degrees
Cross Section	Rectangular
Attenuation Principle	Dissipative
Absorbing Fill	Acoustic glass fibre
Media Protection	Perforated metal
Internal Geometry	Aerodynamic turning splitters
Casing	Galvanized sheet metal
Connection Options	Slip connection or flanges
Power Requirement	Passive, no electrical supply
Customization	Available for the required duct turn, acoustic spectrum and available space.

Applications

Fan-room duct corners
Supply bends with limited straight length

Solutions for Your Application

There is no straight run available for an attenuator.

The sound-absorbing section is incorporated into the required elbow.

An abrupt empty corner creates an unfavorable flow path.

Curved splitters guide the air through the direction change.

Available Options

Welded casing
Flanged connections
Access door
