The acoustic element must fit within a fixed straight section.
The one-metre casing establishes a defined installation length.

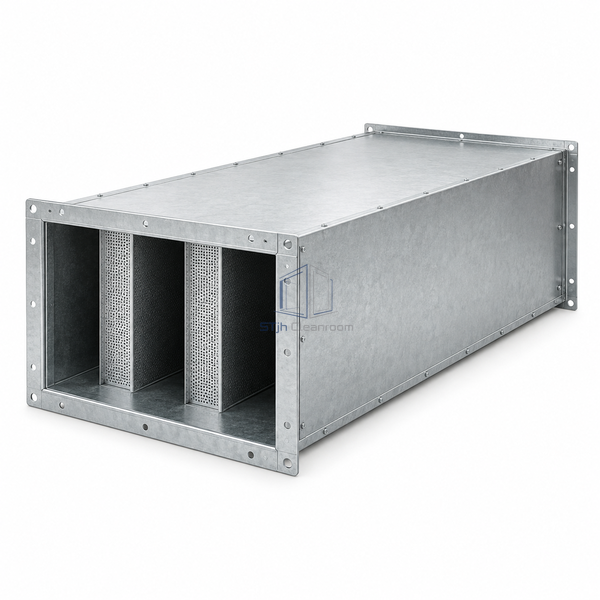

STJH-RECTANGULAR-DUCT-SILENCER-600X300X1000
Rectangular Duct Silencer 600 x 300 x 1000 mm
A medium flanged attenuator for cleanroom supply and return branches.
- The wider acoustic section suits medium ventilation branches.
- A constant body length simplifies allocation within a straight duct run.
Product Introduction
The enlarged airway provides space for a broader arrangement of acoustic elements. It retains the one-metre length while increasing the duct connection, making it suitable where a compact branch silencer would restrict the available section.
Key Features
- The wider acoustic section suits medium ventilation branches.
- A constant body length simplifies allocation within a straight duct run.
Technical Parameters
| Nominal Connection | 600 x 300 mm |
|---|---|
| Body Length | 1000 mm |
| Enclosure | Welded galvanized sheet steel |
| Sound Treatment | Internal absorbing media |
| Flow Path | Straight rectangular |
| Fixing Method | Flanged ends |
| Flange Width | 640 mm |
| Flange Height | 340 mm |
| Connection Holes | 9 mm diameter |
| Customization | Available to suit the required acoustic treatment and duct environment. |
Applications
- Medium cleanroom return branches
- Supply ducts downstream of plant equipment
Solutions for Your Application
A small front opening would accelerate the airflow.
The larger nominal connection preserves the intended medium duct section.
Available Options
- Absorber arrangement
- Mating flange details
Planning a Rectangular Duct Silencer 600 x 300 x 1000 mm specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
