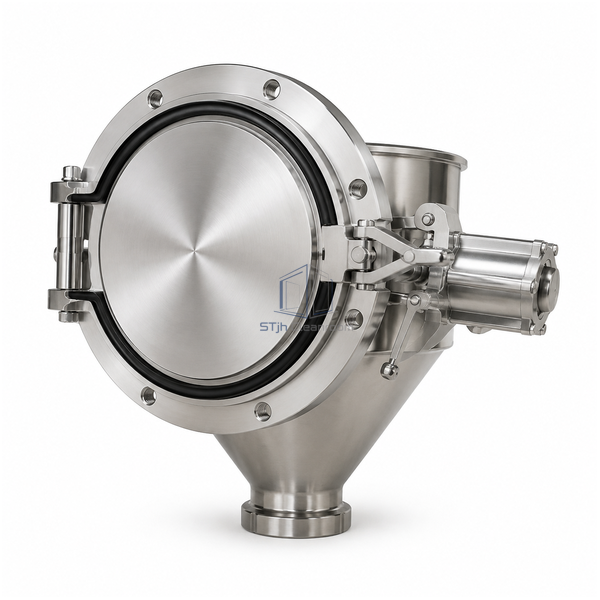

STjh 190 mm rapid transfer port with an integrated discharge funnel and narrow outlet on white

STJH-RAPID-TRANSFER-PORT-190-FUNNEL

Rapid Transfer Port 190 mm Funnel-Integrated

A 190 mm rapid transfer interface with a factory-integrated funnel for guided contained discharge through a barrier wall.

Integrated discharge funnel
190 mm transfer opening
Barrier-mounted flow path

Request a Quote Browse Products

Product Introduction

The integrated funnel changes this port from a general docking interface into a guided discharge point. Product or components can move through the 190 mm opening toward receiving equipment while the funnel geometry helps direct the flow and reduces the need for a separate transition piece.

Key Features

Guided discharge

The funnel directs material from the transfer opening toward the receiving connection or vessel.

Reduced interface count

Factory integration removes a separate loose funnel from the contained transfer sequence.

Compact barrier penetration

The 190 mm interface suits isolator or process walls where a larger port is unnecessary.

Technical Parameters

Nominal Port Diameter	190 mm
Integrated Feature	Fixed transfer funnel
Primary Operation	Contained material discharge
Mounting Location	Isolator or process wall
Port Type	Alpha rapid-transfer interface
Flow Direction	Through funnel toward receiving equipment
Material Form	Powders or compatible components
Transfer Connection	Compatible beta transfer component
Cleaning Access	Defined by funnel and receiving-interface arrangement
Customization	Funnel outlet, wall adapter and receiving connection can be tailored to the material and process equipment.

Applications

Contained powder discharge, component feeding and guided transfer from an isolator into a receiving vessel or downstream process.

Solutions for Your Application

A loose transition funnel adds handling steps inside a restricted enclosure.Use the integrated funnel to create a permanent guided outlet at the 190 mm port.

Poor-flowing material may bridge in an unsuitable outlet geometry.Match the funnel angle and outlet connection to the powder properties and required discharge rate.

Available Options

Funnel outlet geometry, receiving connector, wall adapter and compatible beta hardware can be selected for the process.

Planning a Rapid Transfer Port 190 mm Funnel-Integrated specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
