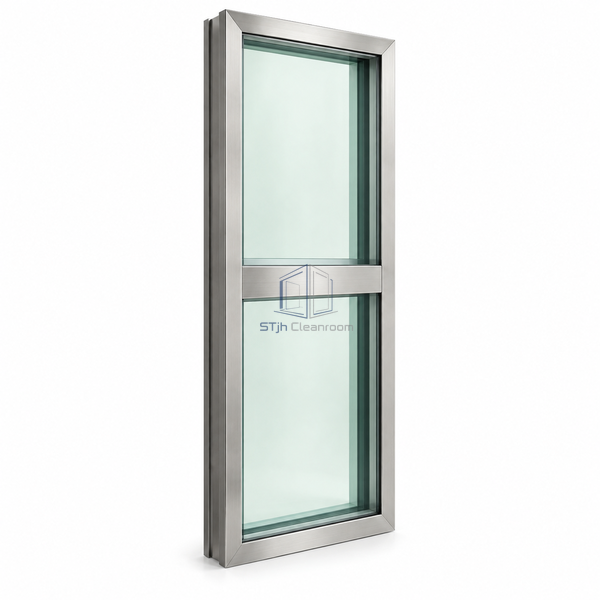

STjh tall 316 stainless lead-glass window on white, with a horizontal transom between upper and lower pale green glazing sections.

STJH-RADIATION-SHIELDING-LEAD-GLASS-CLEANROOM-WINDOW-316-TRANSOM

Radiation-Shielding Lead Glass Cleanroom Window 316 Stainless Transom-Supported

A tall 316 stainless shielding window with a horizontal transom supporting stacked lead-glass sections.

A horizontal transom supports the height of the glazing assembly.
Stacked viewing sections preserve the full width of each individual view.
Polished stainless liners finish the deep shielding-window reveal.

Request a Quote Browse Products

Product Introduction

The tall window layout introduces a horizontal transom at the published 1600 mm height threshold. Its width stays below the mullion threshold, leaving the glazing arranged as upper and lower viewing sections. A triple-glazed shielding build is enclosed within a polished 316 stainless perimeter, with reveal liners covering the sub-frame attachments. The arrangement suits vertically extended observation areas where the glass needs intermediate support without dividing the opening into narrow side-by-side strips.

Key Features

A horizontal transom supports the height of the glazing assembly.
Stacked viewing sections preserve the full width of each individual view.
Polished stainless liners finish the deep shielding-window reveal.

Technical Parameters

Surround Grade	316 stainless steel
Glazing Construction	Triple glazed
Specialist Glass	Lead-shielding glass
Support Direction	Horizontal transom
Transom Height Threshold	1600 mm overall window height
Width Format	Below 1400 mm mullion threshold
Viewing Arrangement	Upper and lower glazing sections
Reveal Material	Polished stainless steel
Wall Attachment	Concealed sub-frame fixings
Customization	Tall opening dimensions, transom position and glass build can be configured for the intended shielding-wall application.

Applications

Tall viewing openings in radiological research rooms
Shielded observation of vertically arranged medical equipment

Solutions for Your Application

The viewing height needs intermediate structural support.

Use a transom to divide the tall glass assembly into upper and lower sections.

Narrow vertical divisions would reduce the useful width of the view.

Keep the width below the mullion threshold and use a horizontal support layout.

Available Options

Tall-screen dimension selection
Shielding-glass build selection
Wall-depth reveal adaptation
