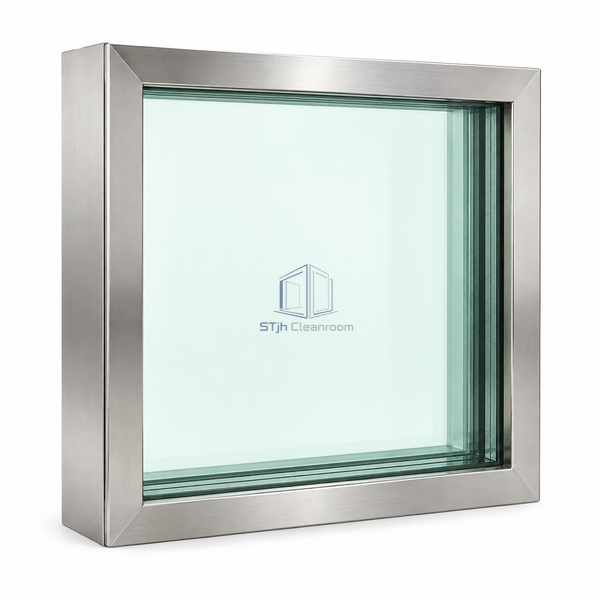

STjh undivided lead-glass observation window on white, showing a compact stainless surround and a continuous pale green viewing pane without crossbars.

STJH-RADIATION-SHIELDING-LEAD-GLASS-CLEANROOM-WINDOW-304-UNDIVIDED

Radiation-Shielding Lead Glass Cleanroom Window 304 Stainless Undivided

A compact, undivided lead-glass viewing assembly with a 304 stainless surround and flush outer faces.

An undivided viewing area keeps the center of the opening clear.
Flush outer faces allow access for cleaning from either room.
Concealed wall attachments preserve a continuous stainless reveal.

Request a Quote Browse Products

Product Introduction

The window combines a triple-glazed shielding build with a polished 304 stainless perimeter. Its compact viewing layout omits the intermediate mullions and transoms used to support larger screens. A concealed sub-frame anchors the assembly within the wall, and stainless reveal liners cover the attachments. The outer glazing meets both room-facing planes, providing smooth observation surfaces. This configuration suits smaller viewing points in radiological clean facilities where a continuous view through one undivided opening is useful.

Key Features

An undivided viewing area keeps the center of the opening clear.
Flush outer faces allow access for cleaning from either room.
Concealed wall attachments preserve a continuous stainless reveal.

Technical Parameters

Frame Grade	304 stainless steel
Frame Finish	Polished stainless steel
Glazing Build	Triple glazed
Shielding Element	Lead-shielding glass
Viewing Layout	Undivided
Compact Opening Envelope	Width below 1400 mm and height below 1600 mm
Face Alignment	Flush glazed both sides
Mounting Structure	Concealed sub-frame
Reveal Covering	Stainless steel liners
Customization	Compact opening size, reveal depth and shielding-glass build can be tailored to the intended radiological application.

Applications

Compact radiological laboratory observation points
Small viewing openings in medical research shielding walls

Solutions for Your Application

A central support would obscure a small procedure viewing area.

Use the compact undivided layout with support at the perimeter.

Wall attachments are difficult to clean when left exposed.

Cover the sub-frame connections with polished stainless reveal liners.

Available Options

Wall-specific reveal depth
Shielding-glass thickness selection
Compact custom opening dimensions
