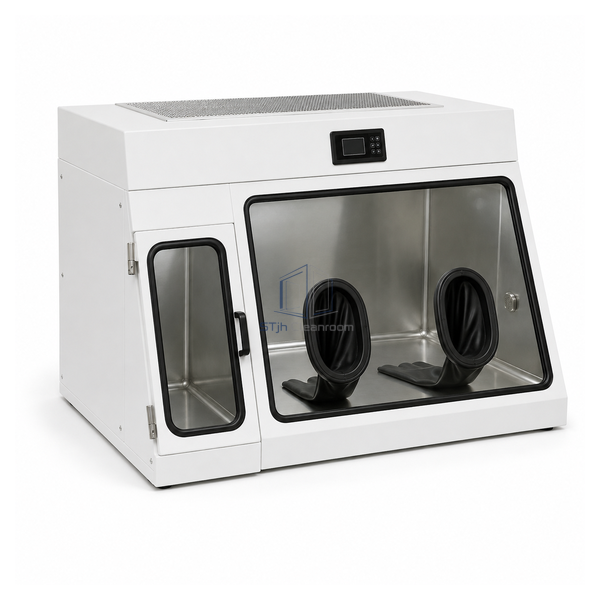

STjh 1200 mm positive-pressure closed RABS with two oval glove ports and a left transfer door on white

STJH-RABS-BARRIER-SYSTEM-1200-POS

Closed Restricted Access Barrier System 1200 mm Positive-Pressure

A compact positive-pressure closed RABS for sterile non-hazardous preparation within an 840 mm main work zone.

Positive-pressure operation
840 mm main work zone
Integrated pass-through

Request a Quote Browse Products

Product Introduction

This 1.2 m configuration uses a positive pressure scheme to support product protection during low-volume sterile preparation. The enclosure combines an 840 mm main work zone with a separate pass-through, creating a compact rigid glove-port barrier for sites that do not require hazardous-material containment.

Key Features

Product-protection pressure scheme

Positive pressure supports the clean working environment used for non-hazardous sterile handling.

Compact closed barrier

The 1340 mm enclosure places both the primary zone and pass-through within a modest equipment width.

High-efficiency filtration

H14 HEPA filtration supplies the enclosed process space through the RABS airflow system.

Technical Parameters

External Dimensions without Base	1340 x 820 x 1320 mm
Main Work Zone	840 x 610 x 670 mm
Pass-Through Chamber	355 x 610 x 670 mm
Pressure Scheme	Positive
Barrier Type	Closed rigid glove-port enclosure
Filtration	H14 HEPA, greater than 99.995% at 0.1-0.3 µm
Process Suitability	Sterile non-hazardous preparation
Material Flow	Separate pass-through into the main zone
Nominal Size Class	1.2 m
Customization	Glove positions, base support and process connections can be arranged for the intended sterile workflow.

Applications

Low-volume sterile preparation, aseptic component handling and non-hazardous process steps requiring a compact closed barrier.

Solutions for Your Application

Roomborne contamination could enter during open manipulation.Use the positive-pressure closed barrier and handle materials through the dedicated pass-through.

A full-size isolator would exceed the available installation width.The 1340 mm external envelope consolidates the main zone and transfer chamber into a compact arrangement.

Available Options

Glove-port arrangement, base frame, service penetrations and process interfaces can be selected around the non-hazardous sterile operation.

Planning a Closed Restricted Access Barrier System 1200 mm Positive-Pressure specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
