PVDF-Coated Chemical-Resistant Cleanroom Panel Rock Wool Wall

Mineral-fiber insulation with a PVDF-coated steel clean face.

The mineral-fiber center provides an alternative where the wall schedule excludes foam insulation.
Prefinished steel faces reduce the amount of coating work required inside the room.
Framed edges provide a defined perimeter for sealed connections and opening trims.

Request a Quote Browse Products

Product Introduction

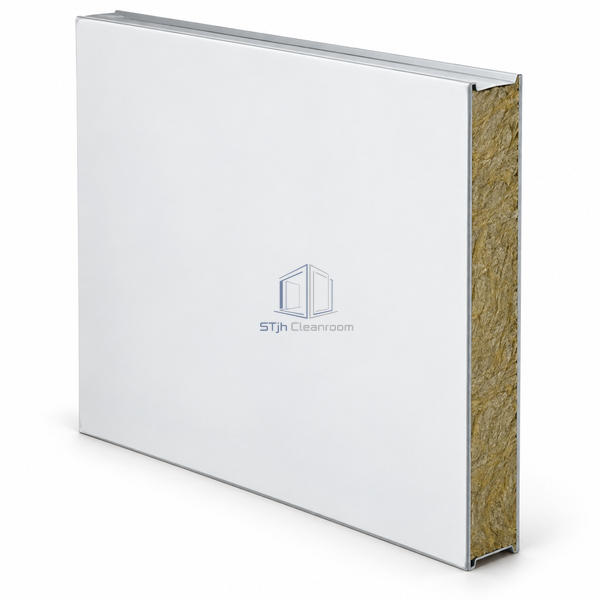

Rock wool fills the space between steel facings in this modular wall panel. A PVDF topcoat over the prepared metal surface forms the room boundary, while framed edges enclose the fibrous core. Thickness and module-width choices allow the same mineral-core construction to fit different partition layouts.

Key Features

The mineral-fiber center provides an alternative where the wall schedule excludes foam insulation.
Prefinished steel faces reduce the amount of coating work required inside the room.
Framed edges provide a defined perimeter for sealed connections and opening trims.

Technical Parameters

Core Material	Rock wool
Panel Thickness Options	50, 75 or 100 mm
Effective Width Options	980 or 1180 mm
Maximum Wall Length	9000 mm
Steel Facing Thickness	0.4-0.8 mm
Facing Substrate	Galvanized steel
Edge Frame Thickness	0.6 or 0.8 mm
Surface Finish	Smooth PVDF coating
Joint Type	Framed modular edges with sealed connections
Customization	Available for the intended application and operating environment.

Applications

Laboratory partitions
Biotechnology room boundaries

Solutions for Your Application

The specification requires mineral insulation behind a regularly cleaned wall face.

Rock wool is enclosed between coated steel skins, keeping the fibrous material inside the panel.

A long partition run contains openings that interrupt the standard panel layout.

Cut-to-length modules and framed perimeter details accommodate the wall run and its openings.

Available Options

Panel dimensions to suit the wall run
PVDF finish selection
