STJH-PVDF-COATED-CHEMICAL-RESISTANT-CLEANROOM-PANEL-PIR-WALL

PVDF-Coated Chemical-Resistant Cleanroom Panel PIR Wall

Foam-insulated wall module for chemically cleaned interiors.

Rigid foam distributes insulation continuously between the metal faces.
Two available wall widths help organize the joint pattern around openings.
A factory-applied fluoropolymer finish arrives ready for wall installation.

Request a Quote Browse Products

Product Introduction

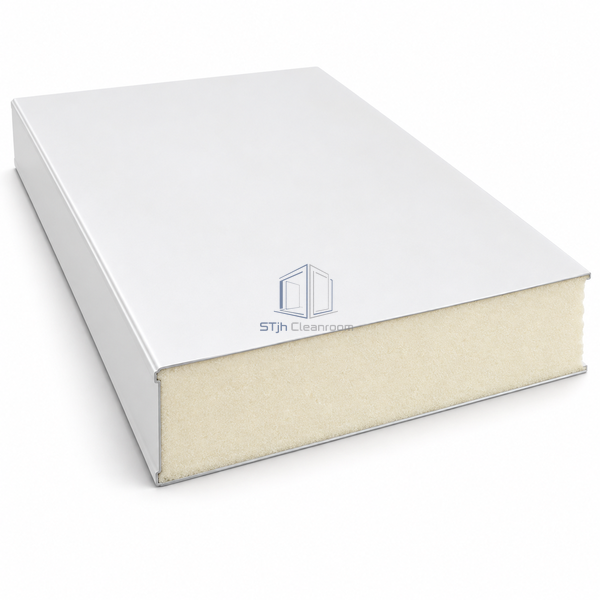

Steel facings are bonded to a rigid PIR center, with enclosed profiles containing the core around the perimeter. A PVDF coating forms the finished room surface, so the panel combines the partition body and its exposed finish in one factory-built module.

Key Features

Rigid foam distributes insulation continuously between the metal faces.
Two available wall widths help organize the joint pattern around openings.
A factory-applied fluoropolymer finish arrives ready for wall installation.

Technical Parameters

Core Material	PIR rigid foam
Effective Width	980 or 1180 mm
Maximum Wall Panel Length	10000 mm
Steel Facing Thickness	0.5-0.6 mm
Core Density	38-45 kg/m³
Facing Material	Coated steel
Core Structure	Closed-cell foam
Surface Finish	PVDF coating
Edge Construction	Fully enclosed profile
Customization	Available for the intended room geometry and operating environment.

Applications

Temperature-controlled laboratory boundaries
Pharmaceutical process partitions

Solutions for Your Application

Door and window positions leave awkward panel cuts in the wall elevation.

Compare the 980 and 1180 mm module layouts around the openings before selecting the panel width.

A long panel may be difficult to bring into an existing building.

Select the delivered length around the available handling route as well as the finished wall height.

Available Options

Wall thickness selection
Cut-to-size modules

Planning a PVDF-Coated Chemical-Resistant Cleanroom Panel PIR Wall specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
