STJH-PVDF-COATED-CHEMICAL-RESISTANT-CLEANROOM-PANEL-MAG-WALL

PVDF-Coated Chemical-Resistant Cleanroom Panel Magnesium-Core Wall

Magnesium-based infill beneath a smooth PVDF metal surface.

The mineral-based infill offers a distinct material choice for the panel schedule.
Enclosed perimeter details keep cut core surfaces away from the occupied space.
Selectable panel thicknesses support different wall-interface depths.

Request a Quote Browse Products

Product Introduction

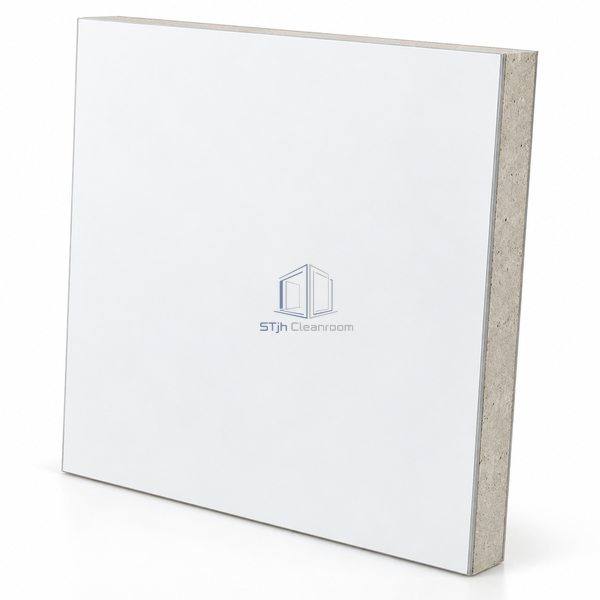

A magnesium-based center is enclosed by steel facings and perimeter framing in this wall module. The exposed metal carries a smooth PVDF finish over its prepared substrate. Standard modular dimensions provide a practical starting point for forming opaque cleanroom partitions and service-room boundaries.

Key Features

The mineral-based infill offers a distinct material choice for the panel schedule.
Enclosed perimeter details keep cut core surfaces away from the occupied space.
Selectable panel thicknesses support different wall-interface depths.

Technical Parameters

Core Material	Magnesium-based
Panel Thickness Options	50, 75 or 100 mm
Effective Width Options	980 or 1180 mm
Maximum Wall Length	9000 mm
Steel Facing Thickness	0.4-0.6 mm
Facing Substrate	Galvanized steel
Frame Thickness	0.8 mm
Surface Finish	Smooth PVDF coating
Panel Connection	Framed edges with sealed joints
Customization	Available for the intended use and operating environment.

Applications

Cleanroom partitions specifying magnesium infill
Healthcare service-room boundaries

Solutions for Your Application

The material schedule calls for a magnesium-based center.

This configuration retains the specified mineral-based infill within the metal-faced module.

A service penetration can expose the center of a cut panel.

Matched perimeter closures finish the cut edge and provide a surface for sealing around the opening.

Available Options

Cut-to-length wall units
Coating colour selection

Planning a PVDF-Coated Chemical-Resistant Cleanroom Panel Magnesium-Core Wall specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
