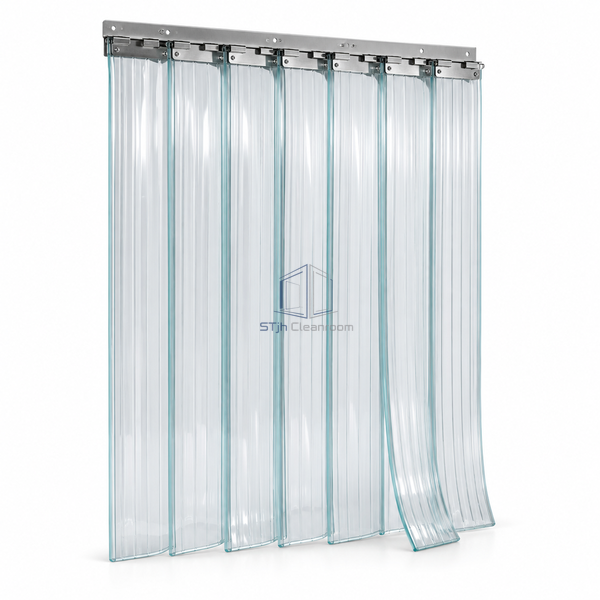

STjh double-ribbed PVC strip curtain with visible raised longitudinal ribs and overlapping clear strips on white.

STJH-PVC-STRIP-CURTAIN-DOOR-DOUBLE-RIBBED

PVC Strip Curtain Door Double-Ribbed Heavy-Traffic

Double-ribbed clear PVC strips for busy support routes exposed to repeated trolley contact.

Ribs take the first contact from passing loads.
Flexible strips open only around the moving object.
Replaceable lengths make localized wear easier to address.

Request a Quote Browse Products

Product Introduction

Raised ribs run along both faces of each flexible strip, keeping much of the transparent web away from direct rubbing. The overlapping lengths hang from a common header and deflect around passing carts. This construction differs visibly from a smooth strip curtain and is intended for heavier contact in packaging or material-support areas. Strip width, thickness and overlap are selected to suit the opening and traffic. The curtain provides local flexible separation rather than a rigid, latched pressure boundary.

Key Features

Ribs take the first contact from passing loads.
Flexible strips open only around the moving object.
Replaceable lengths make localized wear easier to address.

Technical Parameters

Material	Clear flexible PVC
Surface Geometry	Ribbed on both faces
Strip Width	200–400 mm
Strip Thickness	4–6 mm
Barrier Form	Overlapping strip curtain
Mounting Position	Above the opening
Operation	Push-through
Visibility	Transparent web between ribs
Maintenance Format	Replaceable strip lengths
Customization	Available for the traffic pattern and opening conditions.

Applications

Packaging support routes with trolley traffic
Material-transfer openings exposed to repeated contact

Solutions for Your Application

Smooth strips become scuffed where carts rub them.

Double-sided ribs take contact ahead of the transparent web.

Replacing an entire barrier for one worn section is wasteful.

Individual suspended strips can be exchanged while retaining the header.

Available Options

Strip section selected for traffic intensity
Partial or greater overlap
Cut lengths for the opening height

Planning a PVC Strip Curtain Door Double-Ribbed Heavy-Traffic specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
