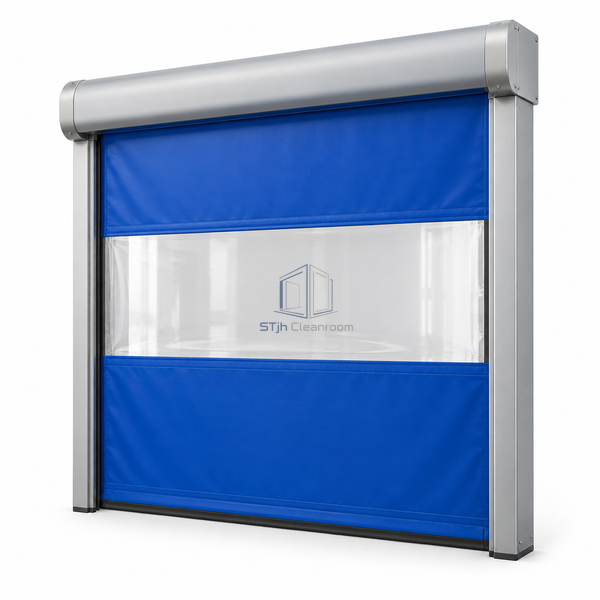

STjh permanent-tension PVC rapid door on white with a taut curtain, broad transparent viewing panel and compact frame.

STJH-PVC-HIGH-SPEED-ROLL-UP-DOOR-PERMANENT-TENSION

PVC High-Speed Roll-Up Door Permanent-Tension

A compact indoor PVC door that keeps the curtain tensioned during closing through a chain-driven mechanism.

Permanent closing tension helps keep the fabric controlled.
A compact case suits confined indoor passages.
The leading optical barrier monitors ahead of physical contact.

Request a Quote Browse Products

Product Introduction

The integrated tensioning system keeps this tear-resistant PVC curtain under tension while it closes. A gearless drive transfers power through a chain, with the rolling sheet guided within a compact frame. The leading light barrier runs inside the door case and monitors the closing edge across its width before contact. A transparent viewing section can be selected to preserve sightlines through the curtain on indoor routes with limited installation space.

Key Features

Permanent closing tension helps keep the fabric controlled.
A compact case suits confined indoor passages.
The leading optical barrier monitors ahead of physical contact.

Technical Parameters

Curtain Material	Tear-resistant PVC
Tensioning	Integrated continuous tension during closing
Motor Arrangement	Gearless drive
Power Transmission	Chain
Maximum Width	3000 mm
Maximum Height	3500 mm
Opening Speed	Up to 1.7 m/s
Closing Speed	Up to 0.8 m/s
Obstacle Detection	Leading light barrier guided inside the case
Customization	Available for the intended indoor route and available installation space.

Applications

Indoor logistics areas serving clean manufacturing.
Compact production support passages with repeated door movement.

Solutions for Your Application

Will the flexible curtain lose control during downward movement?

The integrated system maintains curtain tension throughout closing.

Does obstacle sensing rely only on hitting the lower edge?

The guided leading light barrier detects an obstruction in the closing plane before contact.

Available Options

Transparent viewing panel.
Curtain warning-strip option.

Planning a PVC High-Speed Roll-Up Door Permanent-Tension specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
