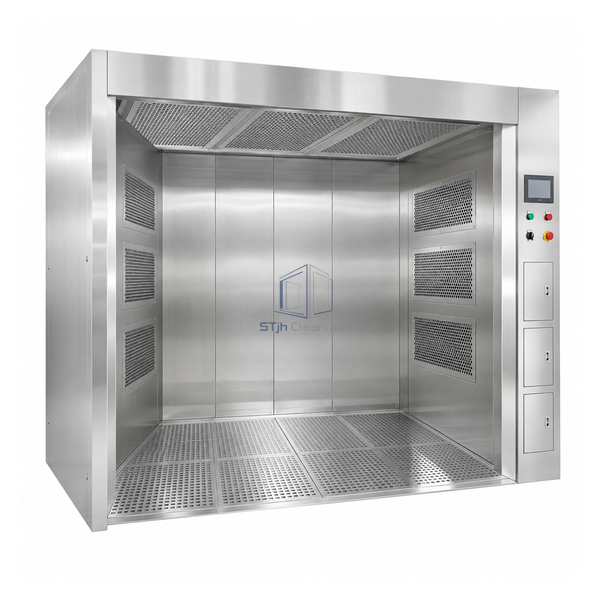

STjh extra-wide 6 ft stainless de-dusting booth with segmented ceiling supply and full perforated return floor

STJH-PROTECTIVE-SUIT-DE-DUSTING-BOOTH-6FT

Protective-Suit De-Dusting Booth 6 ft

A wide dry de-dusting enclosure for bulky PPE, assisted garment cleaning or scheduled higher-throughput use.

6 ft wide enclosure
Perforated stainless return floor
Assisted-cleaning workspace

Request a Quote Browse Products

Product Introduction

At 6 ft wide, this is the largest standard booth in the family. The broad SS304 enclosure provides room for bulky protective clothing or an assistant, while a perforated stainless floor returns dust-laden air through G4 and H14 filtration. The increased internal volume must be considered when selecting fan duty, filter area and room pressure balance.

Key Features

Bulky-PPE clearance

The wide zone keeps suits and cleaning tools away from walls during movement.

Full-floor capture path

Perforated grating draws released particles downward across the occupied area.

Higher-use flexibility

The generous footprint supports an assistant or carefully scheduled successive users.

Technical Parameters

Standard Booth Width	6 ft (1829 mm)
Housing Material	SS304 stainless steel
Floor Construction	Perforated stainless return grille
Supply Airflow	Vertical downflow
Pressure Mode	Negative pressure relative to adjacent space
Prefilter	Washable G4
Final Filter	H14
Return Path	Floor grille to recirculation duct
Intended Access	Bulky PPE or assisted cleaning
Customization	Available based on the intended application and operating environment.

Applications

For high-containment powder operations, large protective garments and assisted de-dusting procedures. Engineering should verify capture velocity across the wider opening and ensure the building air balance tolerates the booth's return arrangement.

Solutions for Your Application

Bulky PPE contacts booth walls and dislodges dust outside the intended capture zone.Use the 6 ft enclosure to preserve clearance around the wearer and helper.

The wider grille can collect product below visible walking surfaces.Provide safe lift-out access and a documented cleaning method for the return plenum.

Available Options

Configure access doors, assisted-cleaning fixtures, filter monitoring and safe plenum access. Dust classification and cleaning chemistry should determine electrical and gasket selections.

Planning a Protective-Suit De-Dusting Booth 6 ft specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
