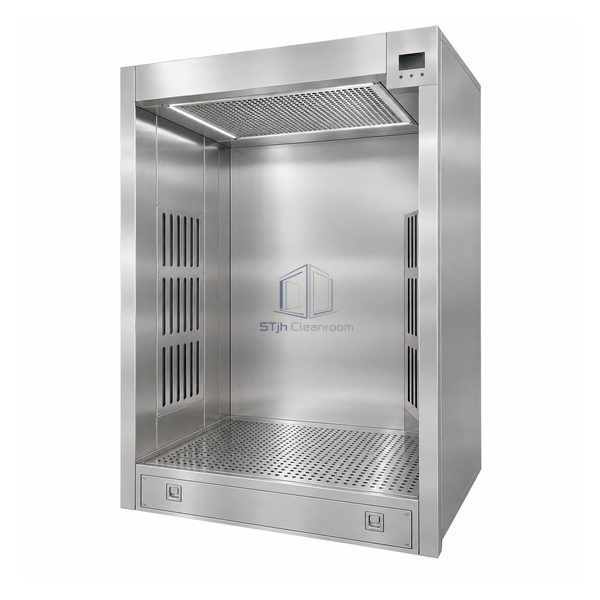

STjh narrow 3 ft stainless protective-suit de-dusting booth with open front, ceiling diffuser and return floor

STJH-PROTECTIVE-SUIT-DE-DUSTING-BOOTH-3FT

Protective-Suit De-Dusting Booth 3 ft

A narrow stainless booth for one-person dry powder removal at low-throughput controlled exits.

3 ft standard width
G4 plus H14 filtration
Vertical downflow and side return

Request a Quote Browse Products

Product Introduction

The 3 ft width is the smallest standard enclosure in this dry de-dusting family. Filtered vertical downflow sweeps released powder toward inward side suction, while G4 prefiltration protects the H14 final stage. SS304 surfaces support routine cleaning, but the narrow work zone is intended for a single wearer without an assistant or bulky transfer load.

Key Features

Space-saving dry process

The narrow cabinet fits compact gown exits where a wet shower and drainage are impractical.

Directed dust capture

Downward supply and inward suction move loosened powder away from the user's breathing zone.

Protected final filter

A washable G4 stage intercepts coarse loading before air reaches the H14 element.

Technical Parameters

Standard Booth Width	3 ft (914 mm)
Housing Material	SS304 stainless steel
Primary Airflow	Vertical downward clean-air supply
Return Airflow	Inward side suction
Prefilter	Washable G4
Final Filter	H14
Floor	Perforated stainless return grille
User Capacity	One person
Noise Level	<=65 dBA source-family value
Customization	Available based on the intended application and operating environment.

Applications

For small pharmaceutical powder rooms, food-ingredient areas and chemical gown exits with low personnel traffic. Confirm the dust hazard, exposure limit and disposal method before deciding whether recirculating filtration is appropriate.

Solutions for Your Application

The exit has too little width for a larger assisted-cleaning booth.Use the 3 ft enclosure for one-person cycles and keep all turning and doffing outside the booth.

Coarse powder could shorten the expensive H14 filter life.Inspect and wash the G4 prefilter on a loading-based schedule before pressure loss becomes excessive.

Available Options

Choose analog or digital controls, filter indication, lighting and compliant dust collection details. Wider 4 ft or 6 ft models are preferable for bulky garments or assisted cleaning.

Planning a Protective-Suit De-Dusting Booth 3 ft specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
