Does the door reveal stored materials through a window?
This model has an opaque blade without observation glazing.
STJH-POWDER-COATED-STEEL-CLEANROOM-DOOR-ROCK-WOOL
Powder-Coated Steel Cleanroom Door Rock-Wool Core
An opaque mineral-core steel door for clean utility access where an uninterrupted door face is preferred.
- Window-free construction preserves visual privacy.
- A continuous coated face avoids glazing-to-leaf junctions.
- Mineral infill provides a distinct alternative to paper or metal-cell cores.
Product Introduction

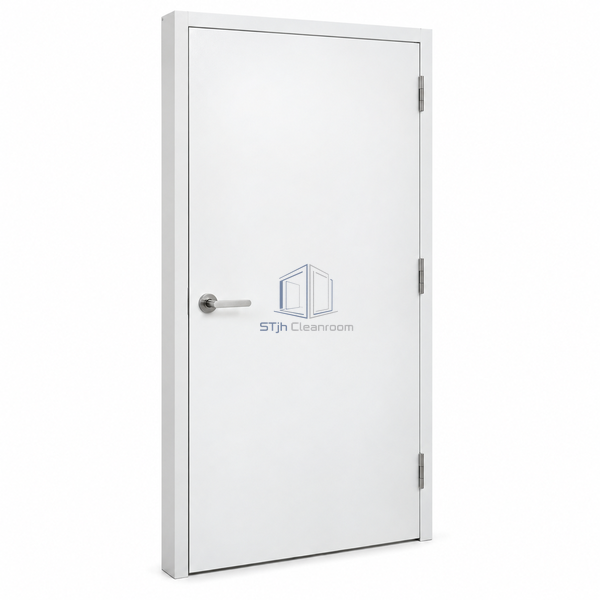

Rock wool fills the space between this door's metal faces, providing a mineral-filled alternative to cellular honeycomb construction. The selected blade has no viewing cutout and is finished with powder coating over its exposed steel surfaces. A metal surround supports the single hinged leaf at the partition opening. The solid format keeps the entire face available for routine wiping and separates the room visually from the adjacent circulation area.
Key Features
- Window-free construction preserves visual privacy.
- A continuous coated face avoids glazing-to-leaf junctions.
- Mineral infill provides a distinct alternative to paper or metal-cell cores.
Technical Parameters
| Leaf Configuration | Single opaque leaf |
|---|---|
| Operation | Manual hinged swing |
| Core | Rock wool |
| Leaf Thickness | 50-62 mm |
| Steel Facing Thickness | 0.8-1.0 mm |
| Core Density | 100-135 kg/m³ |
| Surface Finish | Powder coating |
| Door Frame | Powder-coated metal |
| Glazing | None |
| Customization | Available for the intended room use and wall configuration. |
Applications
- Clean utility rooms requiring a solid door face.
- Controlled service corridors where viewing access is unnecessary.
Solutions for Your Application
Will a rock-wool core automatically provide a specified fire duration?
This selection identifies the mineral-core construction; a separately specified fire-door assembly is used when a rated boundary is required.
Available Options
- Single-flush or semi-flush frame integration.
- Compatible door closer and lever hardware.
Planning a Powder-Coated Steel Cleanroom Door Rock-Wool Core specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
