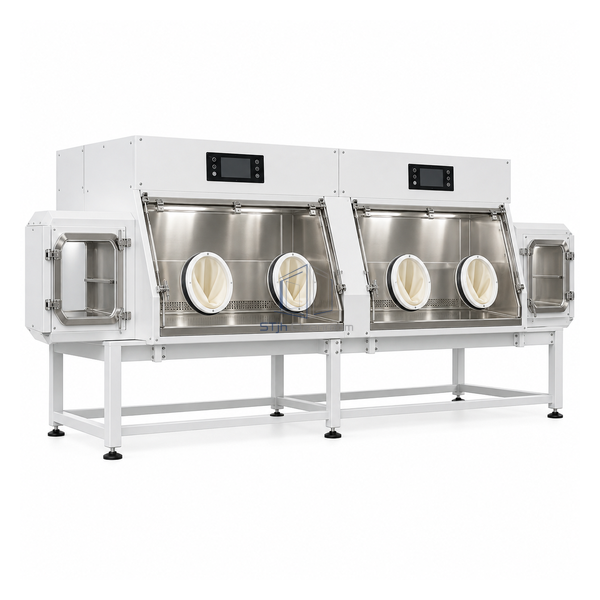

STjh 8 ft positive-pressure isolator with two separate main chambers

STJH-POSITIVE-PRESSURE-ASEPTIC-ISOLATOR-DUAL-8FT

Positive-Pressure Aseptic Isolator Dual-Chamber 8 ft

An eight-foot two-person aseptic isolator with two main work chambers and a dedicated material interchange for each side.

Two 797 mm work chambers
Two 368 mm pass-throughs
Two-person parallel operation

Request a Quote Browse Products

Product Introduction

Unlike the single-chamber four- and six-foot versions, this 2781 mm system mirrors two 797 mm work areas and two 368 mm pass-throughs. Separate operator cells allow concurrent non-hazardous sterile tasks without forcing both users to share one work deck or one material interchange.

Key Features

Independent operator cells

Mirrored chambers support two aseptic preparations at the same time with defined work ownership.

Separate material interchanges

Each chamber receives supplies through its own pass-through, reducing cross-traffic between operators.

Dual electrical provision

The published architecture assigns doubled service capacity to the two-person arrangement.

Technical Parameters

External Dimensions	2781 x 845 x 1516 mm
Main Chamber Architecture	Two chambers, each 797 x 537 x 673 mm
Pass-Through Architecture	Two chambers, each 368 x 537 x 673 mm
Standard Size	8 ft two-person system
Net Weight	655 kg
Electrical Service	Two 20 A / 16 A services
Pressure Mode	Positive pressure in both work and pass-through chambers
Air Cleanliness	Better than ISO Class 5 in each direct work area
Filtration	Full-ceiling HEPA unidirectional airflow over both cells
Customization	Operator-cell accessories, utilities, stand height and pass-through loading direction can be configured for parallel pharmacy operation.

Applications

Central pharmacies running two concurrent non-hazardous sterile preparations, segregated product campaigns or paired operators who require independent materials and work surfaces.

Solutions for Your Application

Two operators sharing one chamber can interrupt each other's aseptic sequence.Allocate each user a dedicated 797 mm chamber and separate pass-through within the dual architecture.

Parallel production increases the demand for powered accessories.Plan around the doubled electrical-service arrangement published for the two-person platform.

Available Options

Cell-specific IV bars, outlets, utility taps, waste chutes, lift stand, work-tray layouts and glove assemblies may be configured independently.
