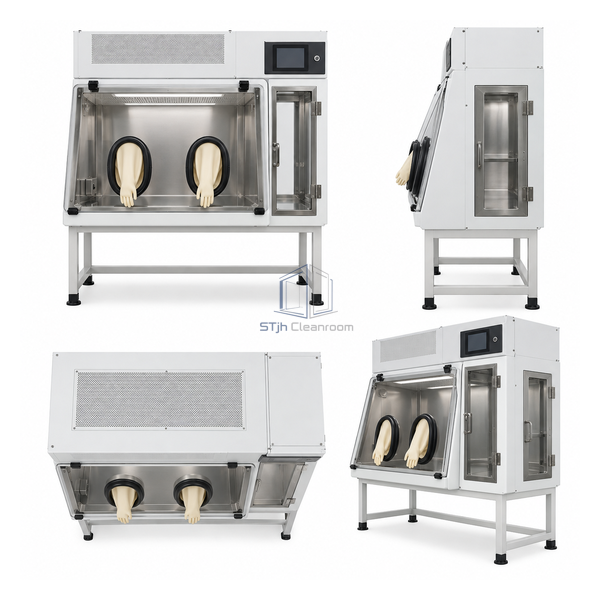

STjh compact positive-pressure isolator with a 797 mm main chamber

STJH-POSITIVE-PRESSURE-ASEPTIC-ISOLATOR-797-4FT

Positive-Pressure Aseptic Isolator 797 mm Main-Chamber

A compact four-foot positive-pressure isolator with a 797 mm main chamber and a 368 mm material pass-through.

797 mm main chamber
368 mm pass-through
295 kg with stand

Request a Quote Browse Products

Product Introduction

The smallest retained configuration provides one contained sterile-compounding station in a 1365 mm-wide envelope. Its slanted viewing panel and oval glove ports prioritize reach across the 797 mm main chamber, while the vertically opening internal pass-through door preserves usable bench space.

Key Features

Space-efficient pharmacy fit

The 1365 mm external width brings a positive-pressure work area to small preparation rooms.

Full-area filtered downflow

A ceiling HEPA filter covering the work cross-section sweeps air from top to bottom.

Accessible material interchange

The compact pass-through allows routine supplies to enter without opening the main viewscreen.

Technical Parameters

External Dimensions	1365 x 845 x 1516 mm
Main Chamber Interior	797 x 537 x 673 mm
Pass-Through Interior	368 x 537 x 673 mm
Standard Size	4 ft single-operator system
Net Weight	295 kg including stand
Pressure Mode	Positive pressure in main and pass-through chambers
Air Cleanliness	Better than ISO Class 5 in the direct work area
Filtration	Full-ceiling HEPA-filtered unidirectional downflow
Intended Materials	Non-hazardous pharmaceutical preparations
Customization	Stand height, glove system, work trays, outlets and pass-through orientation can be selected for the intended pharmacy layout.

Applications

Low-volume IV preparation, clinical-dose compounding and non-hazardous sterile pharmacy work where a full six-foot system would consume unnecessary floor area.

Solutions for Your Application

The compounding room has limited wall length for a barrier isolator.Use the 1365 mm external format while retaining separate main and pass-through chambers.

Operators need to clean beneath removable work surfaces.Specify sectional trays that can be lifted and stacked to expose the lower interior.

Available Options

Hydraulic lift stand, stainless trays, IV bar, GFCI outlet, petcock, waste or sharps chute, ULPA filters and replacement glove assemblies are available.

Planning a Positive-Pressure Aseptic Isolator 797 mm Main-Chamber specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
