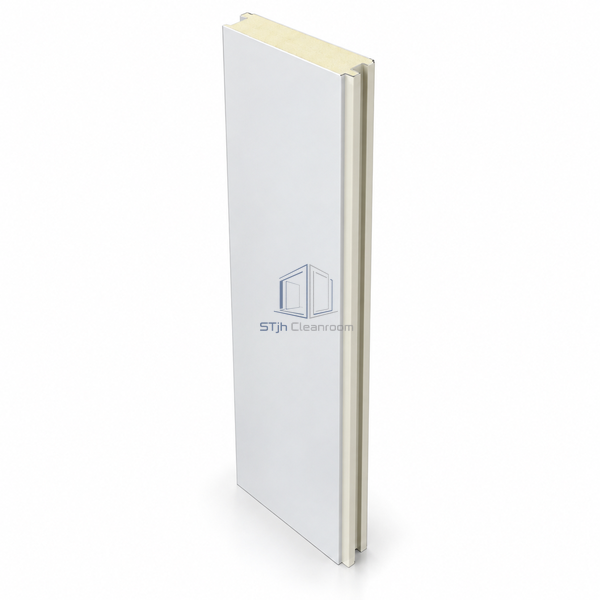

Polyurethane Cleanroom Sandwich Panel 50 mm Machine-Made PUR Wall

Thin closed-cell insulation panel for thermally separated clean interiors.

Closed cells limit pathways through the foam.
Continuous production suits repetitive partition lengths.

Request a Quote Browse Products

Product Introduction

PUR foam fills the space between continuous metal skins. An enclosed longitudinal edge contains the insulation and forms the connection to the next panel, avoiding an exposed foam strip along the installed joint.

Key Features

Closed cells limit pathways through the foam.
Continuous production suits repetitive partition lengths.

Technical Parameters

Core Material	Closed-cell PUR
Panel Thickness	50 mm
Effective Width	980 or 1180 mm
Maximum Length	10000 mm wall panel
Steel Facing Thickness	0.5–0.6 mm
Core Density	38–45 kg/m³
Thermal Conductivity	≤0.024 W/(m·K)
Surface Finish	Coated steel
Joint Type	Continuous enclosed tongue
Customization	Available for the intended application and operating environment.

Applications

Temperature-controlled internal partitions
Light insulated cleanroom walls

Solutions for Your Application

A solid partition offers little separation of room temperatures.

Foamed insulation interrupts heat flow through the broad panel area.

An exposed foam edge complicates joint finishing.

The enclosed profile retains the core at the connection.

Available Options

Selected facing coating
Cut-to-length modules

Planning a Polyurethane Cleanroom Sandwich Panel 50 mm Machine-Made PUR Wall specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
