Polyurethane Cleanroom Sandwich Panel 100 mm Stainless-Faced PUR

Deep foam insulation with stainless surfaces for hygienic process boundaries.

Unpainted stainless defines the exposed finish.
Deep foam center separates the two skins.

Request a Quote Browse Products

Product Introduction

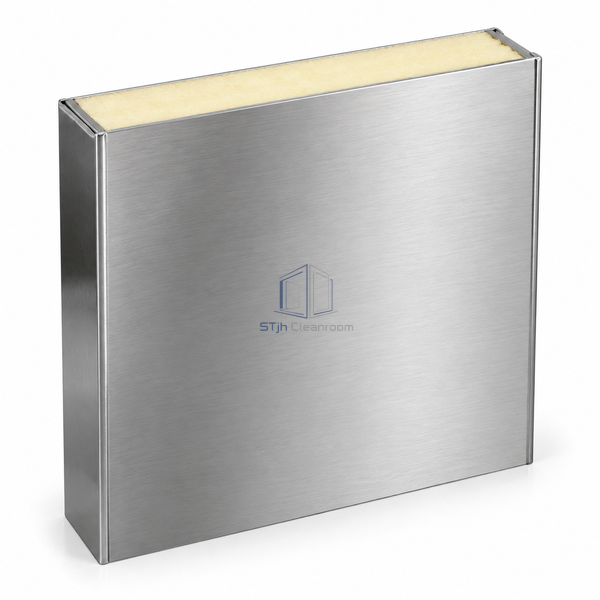

Stainless faces enclose a closed-cell PUR center inside a modular edge arrangement. The construction pairs a cleanable unpainted surface with a substantial insulation layer for temperature-separated rooms.

Key Features

Unpainted stainless defines the exposed finish.
Deep foam center separates the two skins.

Technical Parameters

Core Material	Closed-cell PUR
Panel Thickness	100 mm
Effective Width	980 or 1180 mm
Maximum Length	10000 mm wall panel
Facing Material	Stainless steel
Core Density	38–45 kg/m³
Thermal Conductivity	≤0.024 W/(m·K)
Surface Finish	Natural stainless steel
Joint Type	Framed modular edge
Customization	Available for the intended use and operating environment.

Applications

Cold food-process room boundaries
Insulated stainless cleanroom partitions

Solutions for Your Application

A cleanable metal lining alone provides little insulation.

A full PUR sandwich supplies insulation behind the stainless face.

Painted surfaces are not preferred in the processing area.

The exposed skin uses stainless sheet without a paint layer.

Available Options

Custom wall lengths
Stainless surface selection

Planning a Polyurethane Cleanroom Sandwich Panel 100 mm Stainless-Faced PUR specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
