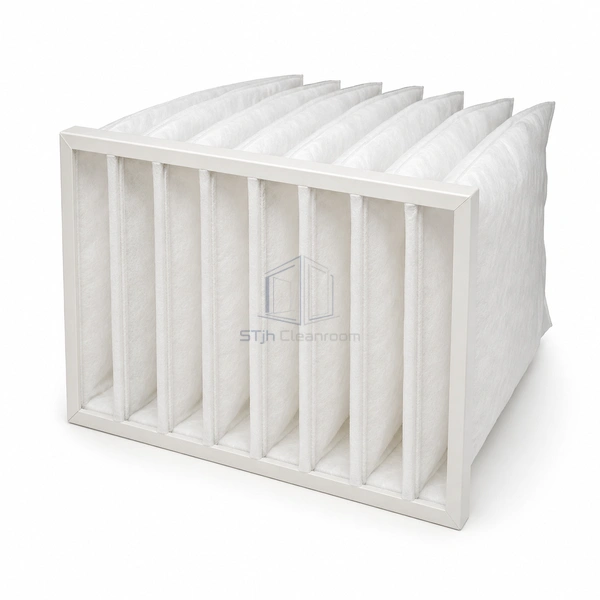

STJH-POCKET-FILTER-EPM10-592X592X650

Medium-Efficiency Pocket Filter 592 × 592 × 650 mm ePM10

An eight-pocket full module for economical medium-efficiency filtration at high AHU airflow.

Eight 650 mm pockets
ISO ePM10 60%
4250 m3/h nominal airflow

Request a Quote Browse Products

Product Introduction

Built on a 592 × 592 mm full-module face, this filter uses eight 650 mm pockets to process 4250 m3/h at ISO ePM10 60%. Its 65 Pa initial pressure drop is lower than the finer grades in the same dimensional family. The model is intended for cost-conscious second-stage duty where coarse and larger fine particles must be controlled before a final filter.

Key Features

Economical full-module flow

Eight pockets distribute the design airflow across a conventional 592 mm filter-bank opening.

Lower clean resistance

A 65 Pa initial drop leaves more pressure margin than the higher-efficiency pocket variants.

Stable second-stage role

The pocket layout adds media area for general particulate loading ahead of finer filtration.

Technical Parameters

Overall Dimensions	592 × 592 × 650 mm
Efficiency Class	ISO ePM10 60%
Nominal Airflow	4250 m3/h
Initial Pressure Drop	65 Pa
Pocket Count	8
Pocket Length	650 mm
Media Type	Synthetic pocket-filter media
Module Format	Full-size HVAC filter module
Filtration Stage	Medium-efficiency prefiltration
Customization	Available based on the intended application and operating environment.

Applications

Used in cleanroom make-up-air units, general process ventilation and supply systems that need a robust intermediate stage without the resistance of an ePM1 filter. It can protect coils and downstream high-efficiency filters from larger atmospheric particles.

Solutions for Your Application

The second stage must handle full AHU flow without a large clean pressure penalty.The eight-pocket ePM10 design delivers 4250 m3/h at a 65 Pa published initial drop.

Pockets collapse or touch under uneven airflow.Maintain even upstream distribution and sufficient pocket clearance across the full 650 mm depth.

Available Options

Confirm header style, pocket orientation, gasket arrangement and final pressure-drop limit for the installed filter bank.

Planning a Medium-Efficiency Pocket Filter 592 × 592 × 650 mm ePM10 specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
