STJH-PLEATED-PRE-FILTER-COARSE65-96

Pleated Pre-Filter 96 mm ISO Coarse 65%

A four-inch coarse pleated panel that adds media area and dust storage for more demanding outside-air duty.

96 mm double-depth frame
Increased pleated media area
ISO Coarse 65% performance

Request a Quote Browse Products

Product Introduction

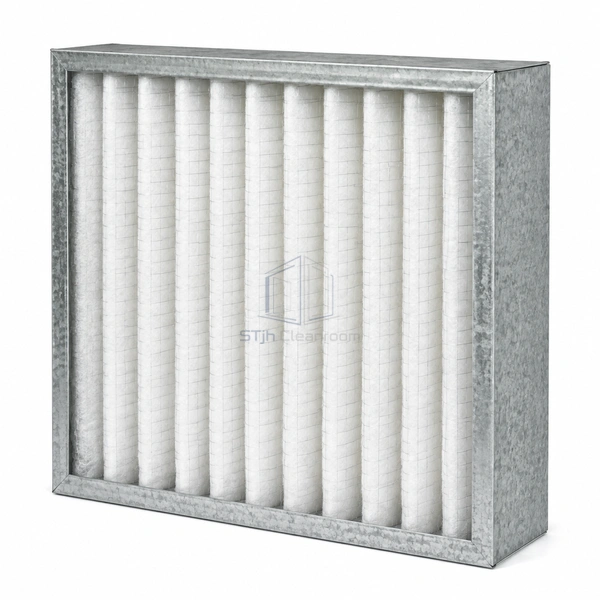

The 96 mm version doubles the depth of the standard pleated panel while retaining a 592 × 592 mm face and ISO Coarse 65% class. Additional synthetic media is formed into deeper radial pleats and supported by corrosion-resistant wire inside a galvanized frame. This model is intended for higher-dust intakes where a longer loading interval is worth the extra cabinet depth.

Key Features

Greater dust storage

Deeper pleats provide additional surface and loading volume compared with the 48 mm model.

Unchanged full-module face

The 592 mm square perimeter fits the same face opening while using more depth behind the rack.

Stable supported pack

Wire backing controls the larger pleat geometry during airflow and filter handling.

Technical Parameters

Nominal Face Size	592 × 592 mm
Filter Depth	96 mm
Efficiency Classification	ISO Coarse 65%
Media Type	Synthetic pleated medium
Pleat Depth	Double-depth radial configuration
Support Grid	Corrosion-resistant wire
Frame Construction	Recyclable galvanized steel
Face Module	Full-size panel
Recommended Duty	Higher-dust outside-air prefiltration
Customization	Available based on the intended application and operating environment.

Applications

Appropriate for outside-air intakes serving production cleanrooms, packaging spaces and controlled environments with seasonal or industrial dust loading. The 96 mm depth is selected when the filter section can accept more media volume and fewer change intervals are desired.

Solutions for Your Application

A 48 mm pre-filter loads too quickly at a dusty outdoor-air intake.The deeper pleat pack adds media area and dust storage without changing the face opening.

The longer filter could interfere with downstream access.Verify at least 96 mm of clear track depth plus removal space before selecting this version.

Available Options

Specify actual face dimensions, frame edge, gasket side and the available 96 mm track depth in the filter cabinet.

Planning a Pleated Pre-Filter 96 mm ISO Coarse 65% specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
