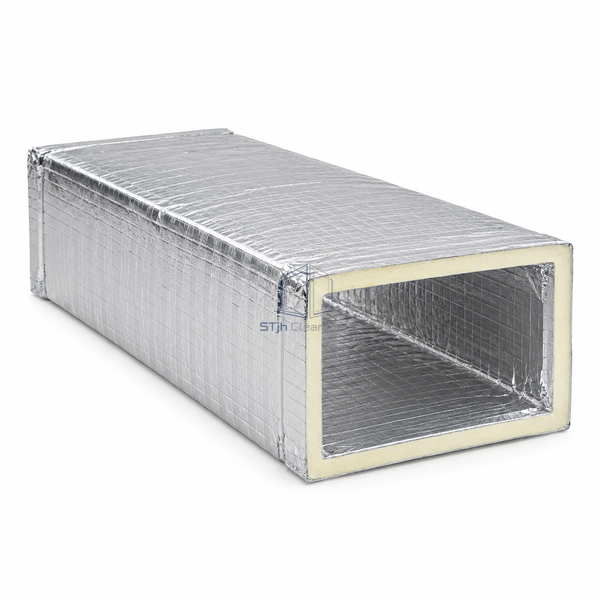

PIR Pre-Insulated Air Duct 10 mm Compact

Thin PIR duct wall for restricted indoor service spaces.

Thin integral insulation limits the external duct envelope.
Aluminum faces form the exposed surfaces of the sandwich wall.

Request a Quote Browse Products

Product Introduction

Aluminum facings enclose a closed-cell PIR core in a compact panel construction. The 10 mm wall reduces the space taken by insulation around the air passage, making it useful where ceiling clearance is limited and the required thermal duty is modest.

Key Features

Thin integral insulation limits the external duct envelope.
Aluminum faces form the exposed surfaces of the sandwich wall.

Technical Parameters

Core Material	Closed-cell PIR
Panel Thickness	10 mm
Panel Width	1200 mm
Panel Length Options	2000, 3000 or 4000 mm
Core Density	42 ± 2 kg/m³
Thermal Conductivity	0.021 W/(m·K) at 10 °C
Closed Cell Content	Greater than 95%
Facing	Aluminum with anticorrosion primer
Service Location	Indoor
Customization	Duct dimensions can be adapted to the intended application and operating environment.

Applications

Low-clearance indoor air branches
Compact service-area ventilation

Solutions for Your Application

External wrapping would consume valuable ceiling clearance.

The insulation is built into a thin rigid duct wall.

Several trades must work in a confined void.

Pre-insulated sections combine shell and thermal layer in one component.

Available Options

Custom branch geometry
Connection profiles

Planning a PIR Pre-Insulated Air Duct 10 mm Compact specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
