STJH-PIR-INSULATED-CLEANROOM-PANEL-1000-50

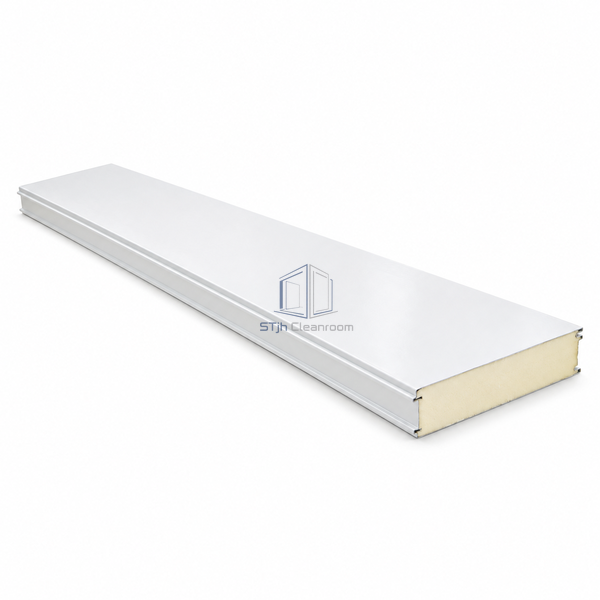

PIR Insulated Cleanroom Panel 50 mm with 1000 mm Cover Width

Compact PIR wall section in a regular one-meter cover module.

Meter-wide cover supports straightforward panel scheduling.
Thin foam section limits partition footprint.

Request a Quote Browse Products

Product Introduction

Foamed polyisocyanurate sits between pre-painted galvanized sheets. The panel is part of a modular enclosure arrangement with base and corner profiles, allowing insulated room boundaries to follow a regular bay width.

Key Features

Meter-wide cover supports straightforward panel scheduling.
Thin foam section limits partition footprint.

Technical Parameters

Core Material	PIR
Panel Thickness	50 mm
Effective Width	1000 mm
Steel Facing Thickness	0.5–0.8 mm
Facing Material	PPGI
Skin Arrangement	Metal faces on both sides
Base Interface	Profiled base system
Surface Finish	Pre-painted steel
Corner Interface	L-bar trim system
Customization	Available to suit the intended application and operating environment.

Applications

Compact insulated laboratory walls
Regular-width cleanroom bays

Solutions for Your Application

Variable panel widths complicate a simple room plan.

The fixed cover width establishes a repeatable layout module.

A thick wall reduces workspace in a small room.

The shallow PIR version provides an insulated option with a modest footprint.

Available Options

Facing gauge selection
Matching base and corner profiles

Planning a PIR Insulated Cleanroom Panel 50 mm with 1000 mm Cover Width specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
