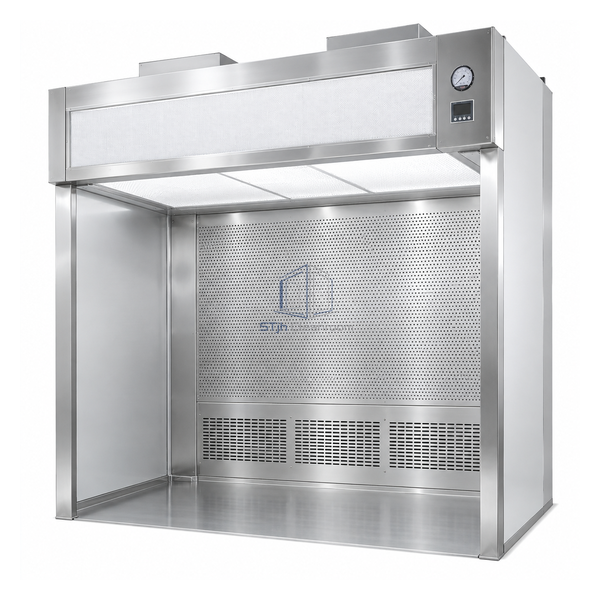

STjh medium 1700 mm pharmaceutical weighing booth with broad H14 ceiling and full perforated rear return

STJH-PHARMACEUTICAL-WEIGHING-BOOTH-1700

Pharmaceutical Weighing Booth 1700 mm

A medium weighing booth for routine dispensing from drums or bags with space around the balance and receiving container.

1600 x 1100 mm work zone
3600 m³/h supply airflow
0.45 m/s ±20% nominal velocity

Request a Quote Browse Products

Product Introduction

This middle model expands the internal zone to 1600 x 1100 x 2000 mm inside a 1700 x 1600 x 2450 mm enclosure. Published supply and exhaust values are 3600 and 360 m³/h, with nominal air velocity of 0.45 m/s ±20%. It provides more operator and container clearance than the 1300 mm booth while remaining smaller than the pallet-oriented 2400 mm model.

Key Features

Routine drum handling

The medium interior accommodates a balance, source drum and receiving container with working clearance.

Balanced partial exhaust

The published 360 m³/h exhaust complements the recirculated supply airflow.

Defined airflow target

A nominal 0.45 m/s velocity provides a commissioning reference for the open working face.

Technical Parameters

External Dimensions	1700 W x 1600 D x 2450 H mm
Internal Dimensions	1600 W x 1100 D x 2000 H mm
Supply Airflow	3600 m³/h
Exhaust Airflow	360 m³/h
Air Velocity	0.45 m/s ±20%
Filter Stages	G4, F7 and H14
Maximum Power	≤3 kW
Construction	Stainless steel enclosure
Work Capacity	Medium drums, bags and balance
Customization	Available based on the intended application and operating environment.

Applications

For routine pharmaceutical raw-material dispensing and weighing from medium drums or bags. Commission face velocity with the actual containers positioned in the work zone.

Solutions for Your Application

The compact booth leaves inadequate clearance around medium source containers.Use the 1600 x 1100 mm interior and define container positions before installation.

Large containers disturb airflow at the open face.Verify the 0.45 m/s target with the normal loaded arrangement in place.

Available Options

Choose stainless grade, worktable, bag support, pressure gauges, lighting and sockets. Exhaust connection and control sequence can follow the material assessment.

Planning a Pharmaceutical Weighing Booth 1700 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
