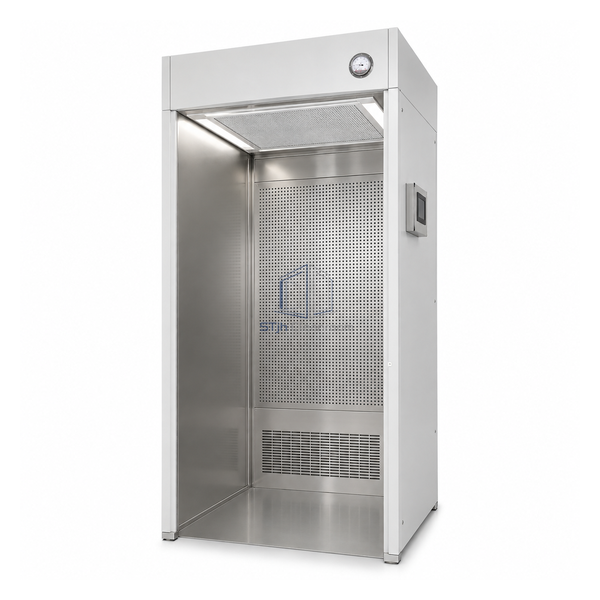

STjh compact 1300 mm pharmaceutical weighing booth with H14 ceiling supply and perforated rear return wall

STJH-PHARMACEUTICAL-WEIGHING-BOOTH-1300

Pharmaceutical Weighing Booth 1300 mm

A compact filtered booth for one balance and small-container pharmaceutical weighing or dispensing.

1200 x 800 mm compact work zone
2500 m³/h supply airflow
Maximum power ≤1.5 kW

Request a Quote Browse Products

Product Introduction

The smallest booth has a 1300 x 1300 x 2450 mm exterior and a 1200 x 800 x 2000 mm working zone. Its published airflow balance uses 2500 m³/h supply and 250 m³/h exhaust through G4, F7 and H14 stages. With maximum power at or below 1.5 kW, it targets one balance and hand-carried source containers.

Key Features

Single-balance footprint

The narrow interior concentrates controlled airflow around one weighing position.

Three-stage filtration

G4 and F7 stages protect the H14 final filter from larger airborne material.

Lower installed power

The compact model has the lowest stated maximum power in the three-booth group.

Technical Parameters

External Dimensions	1300 W x 1300 D x 2450 H mm
Internal Dimensions	1200 W x 800 D x 2000 H mm
Supply Airflow	2500 m³/h
Exhaust Airflow	250 m³/h
Filter Stages	G4, F7 and H14
Maximum Power	≤1.5 kW
Construction	Stainless steel cleanable enclosure
Work Capacity	One balance and small containers
Airflow Mode	Controlled recirculation with partial exhaust
Customization	Available based on the intended application and operating environment.

Applications

For gram-to-small-container pharmaceutical weighing and sampling at one balance. Material hazard and exposure limits must determine whether this airflow configuration is suitable.

Solutions for Your Application

A large dispensing booth consumes excessive room area for one balance.Use the 1200 x 800 mm internal zone for compact operations.

Limited utilities cannot support a high-power airflow system.Plan around the compact model's stated maximum power of 1.5 kW or less.

Available Options

Configure worktable, pressure monitoring, lighting, sockets, control interface and stainless grade. Final airflow and exhaust connection depend on the powder assessment.

Planning a Pharmaceutical Weighing Booth 1300 mm specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
